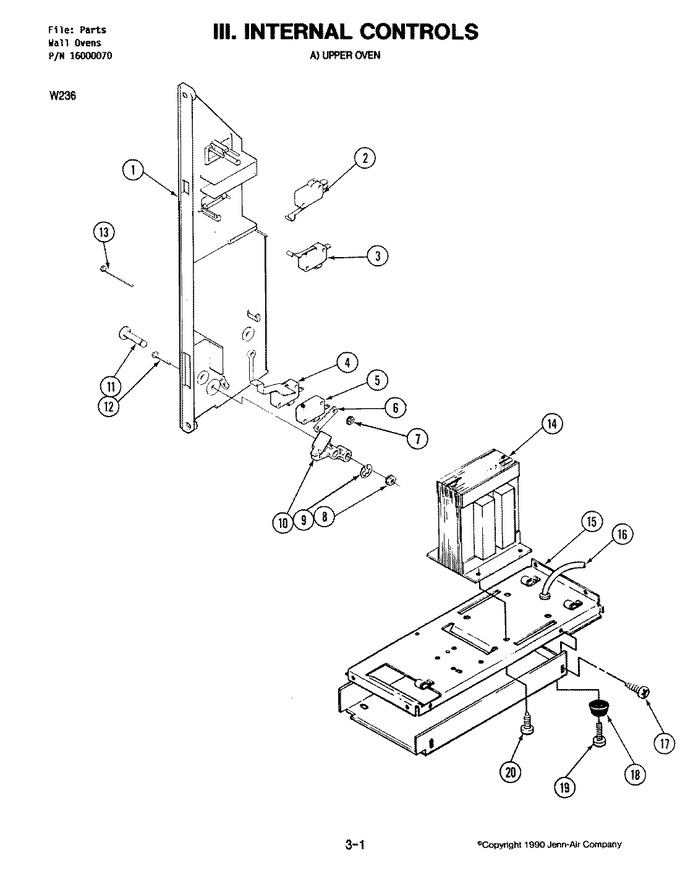

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030133		Bracket, Interlock	1	Appelez-nous	-
2	Y01140038		Switch, Secondary Interlock	1	Appelez-nous	-
3	Y01140030		Switch, Monitor Interlock	1	Appelez-nous	-
4	Y01140042		Switch, Primary Interlock	1	Appelez-nous	-
5	Y01140043		Switch, Logic Interlock	1	Appelez-nous	-
6	Y01100043		Insulator, Switch	1	Appelez-nous	-
7	Y03050001		Nut	1	Appelez-nous	-
8	03050003		Nut	1	Appelez-nous	-
9	03110040		Clip, Retainer	1	Appelez-nous	-
10	02190049		Latch, Door Interlock	1	Appelez-nous	-
11	Y03070031		Pin, Lever & Pivot Latch	1	Appelez-nous	-
12	03010114		Screw	1	Appelez-nous	-
13	03010131		Screw	1	Appelez-nous	-
14	01130028		Transformer, H.v.	1	Appelez-nous	-
15	02040053		Plate, Component Mounting	1	Appelez-nous	-
16	01080050		Cord, Power (blk)	1	Appelez-nous	-
17	03020092		Screw	1	Appelez-nous	-
18	Y02230008		Foot, Base	1	Appelez-nous	-
19	W11233072		Screw   (Replaces: Y03020068)	1		Immediately	$ 12.62
20	03010094		Screw	1	Appelez-nous	-
