SELECT A DIAGRAM

01 - Blower Motor (convection)


02 - Blower Motor (cooling Fan Upper)


03 - Blower Motor (cooling)


04 - Body (lower)


05 - Body (upper)


06 - Control Panel (upper)


07 - Door (lower)


08 - Door (upper)


09 - Internal Controls (lower)


10 - Internal Controls (upper)


11 - Microwave Trim


12 - Oven (lower)

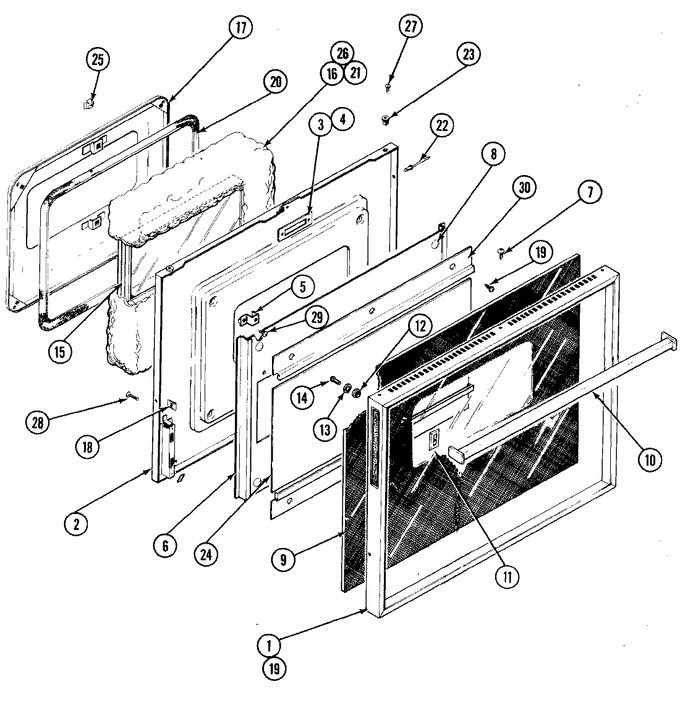

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705173		Frame, Oven Door	1	Appelez-nous	-
2	712188		Liner, Door	1	Appelez-nous	-
3	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
4	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
5	701652		Bracket, Stand-off	1	Appelez-nous	-
6	712250		Baffle	1	Appelez-nous	-
7	WPY706189		Screw (blk)   (Replaces: Y704238)	1		Immediately	$ 6.47
8	Y704223		Bumper, Button	1	Appelez-nous	-
9	704805		Gusset----na	1	Appelez-nous	-
9	705075		Glass, Screened	1	Appelez-nous	-
10	Y704225		Handle	1	Appelez-nous	-
11	Y704224		End Cap (blk)	1	Appelez-nous	-
12	Y703433		Bushing	1	Appelez-nous	-
13	Y700446		Washer	1			$ 5.27
14	Y704231		Screw	1	Appelez-nous	-
15	701648		Window Pack	1	Appelez-nous	-
16	701658		Insulation, Bottom	1	Appelez-nous	-
17	Y712208		Plug (lower)	1	Appelez-nous	-
18	704487		Clip	1	Appelez-nous	-
19	Y704488		Screw (black)	1	Appelez-nous	-
20	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
21	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
22	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
23	701643		Nut, Push In	1	Appelez-nous	-
24	Y704820		Glass, Baffle	1	Appelez-nous	-
25	705404		Clip	1	Appelez-nous	-
26	701660		Insulation, Top	1	Appelez-nous	-
27	WPY706189		Screw   (Replaces: Y706189)	1		Immediately	$ 6.47
28	715870		Screw	1	Appelez-nous	-
29	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
30	Y704819		Retainer, Glass	1	Appelez-nous	-
31	W11233072		Screw (blk)   (Replaces: Y704237)	1		Immediately	$ 12.62
