SELECT A DIAGRAM

01 - Blower Motor (convection)


02 - Blower Motor (cooling Fan Upper)


03 - Blower Motor (cooling)


04 - Body (lower)


05 - Body (upper)


06 - Control Panel (upper)


07 - Door (lower)


08 - Door (upper)


09 - Internal Controls (lower)


10 - Internal Controls (upper)


11 - Microwave Trim


12 - Oven (lower)

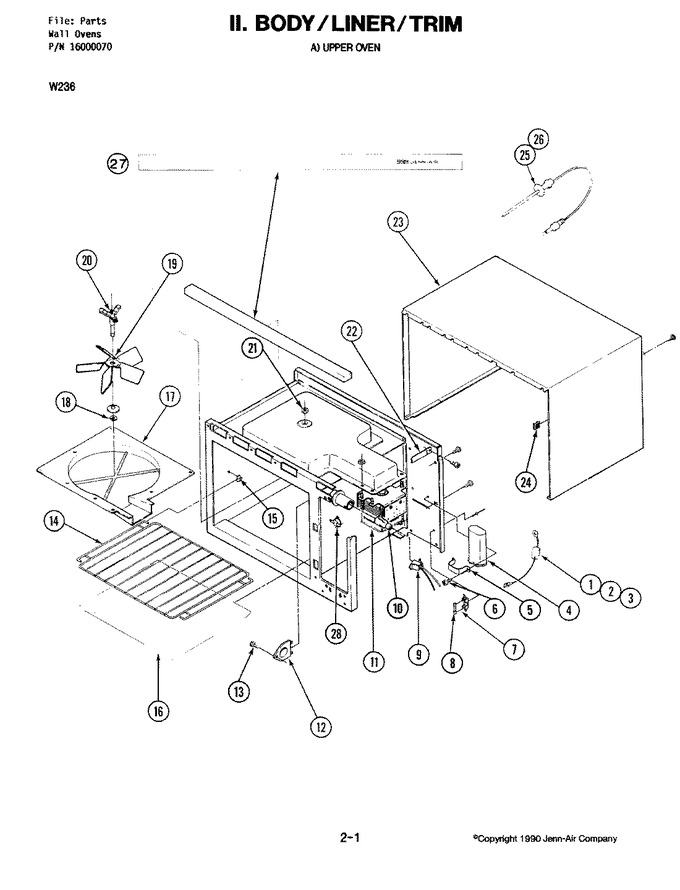

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y04010206		Diode	1	Appelez-nous	-
2	WP8281227		Screw   (Replaces: Y03010144)	1			$ 9.40
3	03050003		Nut	1	Appelez-nous	-
4	Y01020023		Capacitor	1	Appelez-nous	-
5	02030123		Bracket	1	Appelez-nous	-
6	04021262		Frame, Door (blk)	1	Appelez-nous	-
7	Y01100036		Clip, Fuse	1	Appelez-nous	-
8	Y01050005		Fuse 15a 125v	1	Appelez-nous	-
9	01100041		Socket, Lamp	1	Appelez-nous	-
10	Y01060024		Bulb, Light	1	Appelez-nous	-
11	01040004		Magnetron	1	Appelez-nous	-
12	Y02400007		Lens, Bulb	1	Appelez-nous	-
13	03010098		Screw	1	Appelez-nous	-
14	Y02410004		Rack, Oven	1	Appelez-nous	-
15	02010049		Support, Rack	1	Appelez-nous	-
16	Y02280024		Shelf, Glass	1	Appelez-nous	-
17	Y02300045		Cover, Stirrer	1	Appelez-nous	-
18	Y03110055		Clip, Stirrer	1	Appelez-nous	-
19	04021190		Blade, Bushing Assembly	1	Appelez-nous	-
20	02360045		Shaft, Stirrer	1	Appelez-nous	-
21	03050007		Nut, Shaft Stirrer	1	Appelez-nous	-
22	02020020		Brace, Upper Right Support	1	Appelez-nous	-
23	02140070		Cabinet (blk)	1	Appelez-nous	-
24	03110046		Clip, Cabinet (lt)	1	Appelez-nous	-
25	01220006		Probe, Temp.	1	Appelez-nous	-
26	01170008		Jack, Probe	1	Appelez-nous	-
27	02100177		Trim, Top (logo)	1	Appelez-nous	-
28	Y01180008		Switch, Temperature Limit	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
