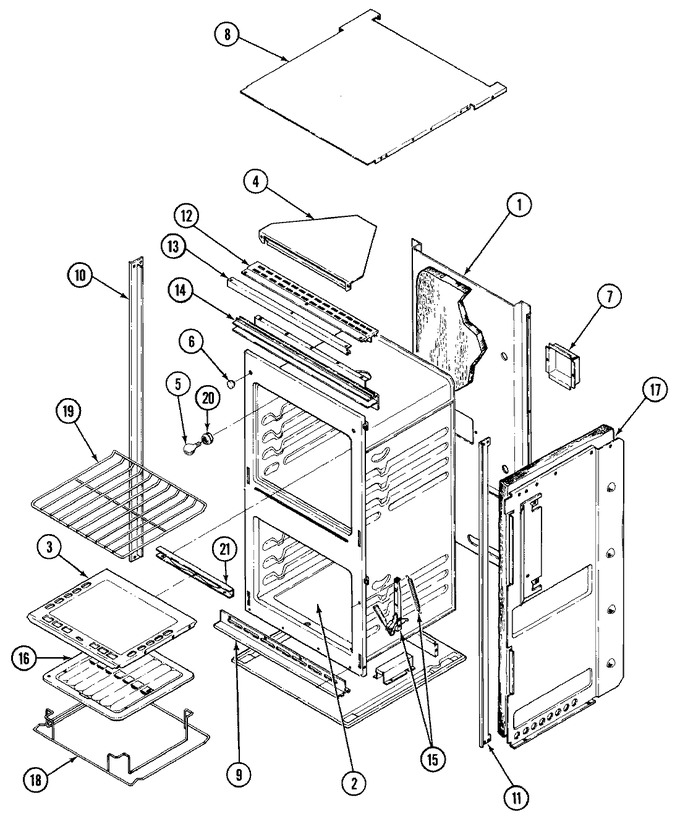

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F041-51 | Back, Main | 01 |
|
- | ||||
| 2 | 2205F005-19 | Bottom, Oven | 01 |
|
- | ||||
| 3 | 2205F008-19 | Bottom, Oven | 01 |
|
- | ||||
| 4 | 4006W077-19 | Box, Flue Assy | 01 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 5 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 01 |
|
Immediately | $ 1.98 | |||
| 6 | 7402P014-60 | Cord, Power | 01 |
|
- | ||||
| 6 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 6 | 8003P009-60 | Bumper, Door (square) | 01 |
|
- | ||||
| 6 | 7101P082-60 | Screw | 01 |
|
- | ||||
| 7 | 4005F088-80 | Cover | 01 |
|
- | ||||
| 8 | W10204425 | Cover Box Wall Oven (Replaces: 4005F152-51) | 01 |
|
- | ||||
| 9 | 7706P153-60 | Extrusion, Bottom (blk) | 01 |
|
- | ||||
| 10 | 7750P029-60 | Extension, Side (left) | 01 |
|
- | ||||
| 11 | 7750P030-60 | Extension, Side (right) | 01 |
|
- | ||||
| 12 | 7706P199-60 | Extrusion, Top (blk) | 01 |
|
- | ||||
| 13 | 7756P009-60 | Extrusion, Top Front (blk) | 01 |
|
- | ||||
| 14 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 14 | 7756P072-60 | Extrusion Vent | 01 |
|
- | ||||
| 14 | 8008P004-60 | Grommet | 01 |
|
- | ||||
| 15 | 7106P036-60 | Hinge | 01 |
|
- | ||||
| 15 | 74001984 | Hinge, Door | 14 |
|
$ 126.36 | ||||
| 15 | 7106P042-60 | Hinge, Door | 01 |
|
- | ||||
| 15 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 15 | 74001856 | Hinge, Door (Replaces: 74001882) | 14 |
|
$ 123.16 | ||||
| 16 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 16 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 17 | 2618F088-51 | Panel, Side Lf. | 01 |
|
- | ||||
| 17 | 2618F089-51 | Panel, Side Right | 01 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 18 | 7801P034-60 | Oven Rack | 01 |
|
- | ||||
| 19 | 7801P005-60 | Rack | 01 |
|
- | ||||
| 20 | 7408P035-60 | Receptacle, Oven Bulb | 01 |
|
$ 30.71 | ||||
| 20 | 7212P004-60 | Seal | 01 |
|
- | ||||
| 21 | 3807F029-80 | Support | 01 |
|
- | ||||
| 21 | 7002P107-60 | Insulation, Wrapper | 01 |
|
- | ||||
| 21 | 8112P064-60 | Manual, Use & Care | 01 |
|
- | ||||
| 21 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 21 | 7002P109-60 | Insulation, Top & Rear | 01 |
|
- | ||||
| 22 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
