SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Gas Controls
New Model Search:

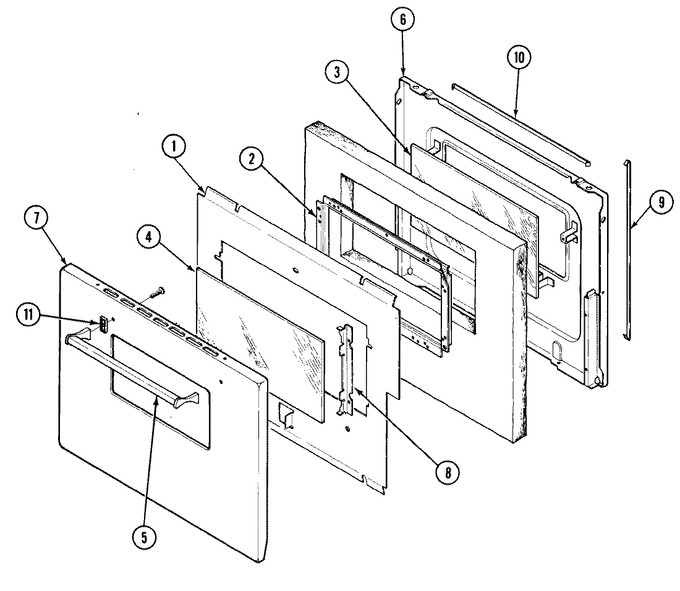

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Upper Door | 01 |
|
- | ||||
| 2 | 3603F013-70 | Frame, Window | 01 |
|
- | ||||
| 2 | 7101P276-60 | Screw (blk) | 01 |
|
- | ||||
| 2 | 7201P017-60 | Gasket, Window | 01 |
|
$ 52.69 | ||||
| 3 | 7902P386-60 | Glass, Inner | 01 |
|
- | ||||
| 4 | 7002P015-60 | Insulation, Door | 01 |
|
- | ||||
| 4 | 7902P051-60 | Glass | 01 |
|
- | ||||
| 5 | 7701P122-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 6 | 2402W133-19 | Lining, Door | 01 |
|
- | ||||
| 7 | 2401F052-74 | Panel, O.d. Almond | 01 |
|
- | ||||
| 8 | 3804F095-80 | Retainer, Glass | 01 |
|
- | ||||
| 9 | 7212P003-60 | Seal, Oven Door | 01 |
|
$ 46.94 | ||||
| 10 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 | ||||
| 11 | 8010P028-60 | Spacer, Door Handle | 01 |
|
- |
