New Model Search:

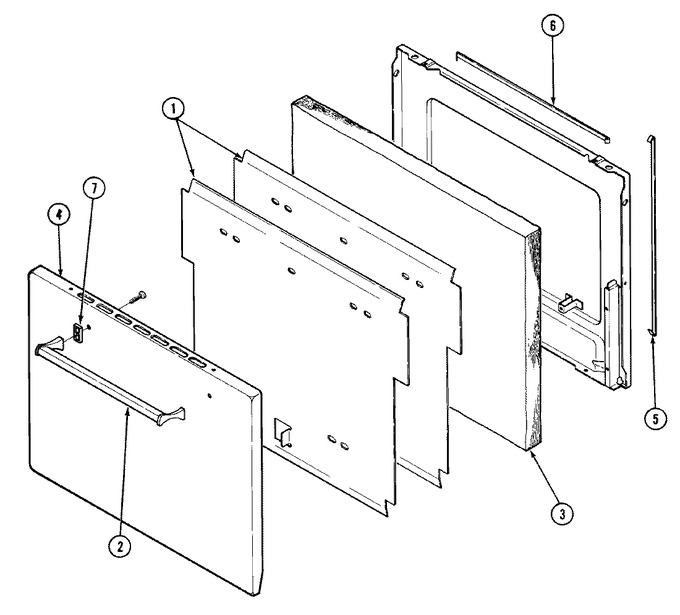

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F089-51 | Baffle, Door | 01 |
|
- | ||||
| 2 | 7701P122-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 3 | 2402W131-19 | Lining Door | 01 |
|
- | ||||
| 4 | 2401F039-74 | Panel, Oven Door Alm | 01 |
|
- | ||||
| 5 | 7212P007-60 | Seal, Door (vertical) | 01 |
|
$ 47.10 | ||||
| 6 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 | ||||
| 7 | 8010P028-60 | Spacer, Door Handle | 01 |
|
- | ||||
| 7 | 7002P019-60 | Insulation, Door Lower | 01 |
|
- |
