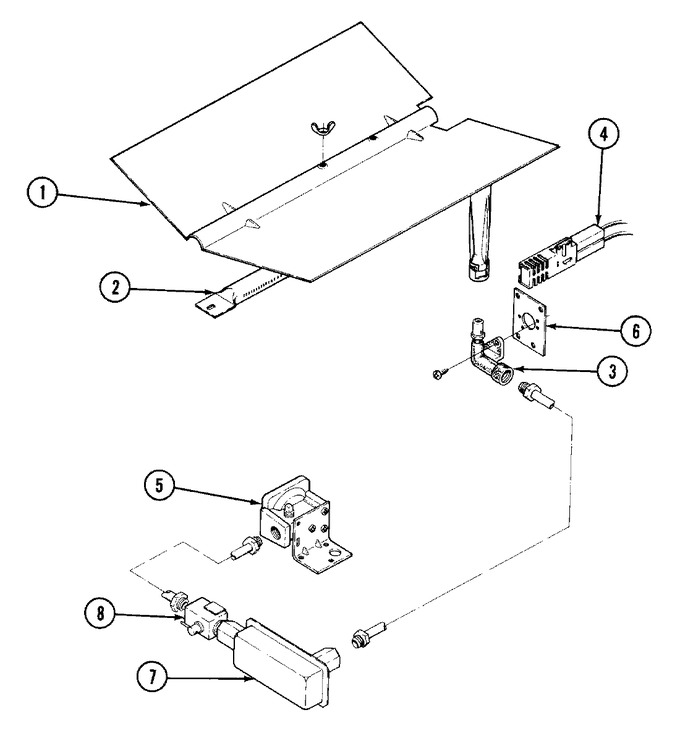

01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F215-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 1 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 2 | 7505P065-60 | Burner, Oven | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 3 | 7507P008-60 | Fitting, Bake Bnr. | 01 |
|
- | ||||
| 4 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 01 |
|
Immediately | $ 60.44 | |||
| 4 | 7111P015-60 | Clamp, Wire | 01 |
|
- | ||||
| 4 | WP3351614 | Screw (Replaces: 7101P328-60) | 01 |
|
Immediately | $ 6.26 | |||
| 4 | 4005F421-45 | Cover,igniter | 01 |
|
- | ||||
| 5 | 3801F235-34 | Bracket Regulator | 01 |
|
- | ||||
| 5 | 7510P036-60 | Regulator Pressure | 01 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 6 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 6 | 3807F122-34 | Support | 01 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 7 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 | ||||
| 7 | 7501P018-60 | Valve, Bake | 01 |
|
- | ||||
| 7 | 7101P071-60 | Screw | 01 |
|
- | ||||
| 8 | 3414F039-44 | Tubing, 3/8 X 31 | 01 |
|
- | ||||
| 8 | 7502P002-60 | Valve, Shut Off | 01 |
|
- | ||||
| 8 | 3414F097-44 | Tubing, Regulator (3/8``) | 01 |
|
- |
