SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Gas Controls
New Model Search:

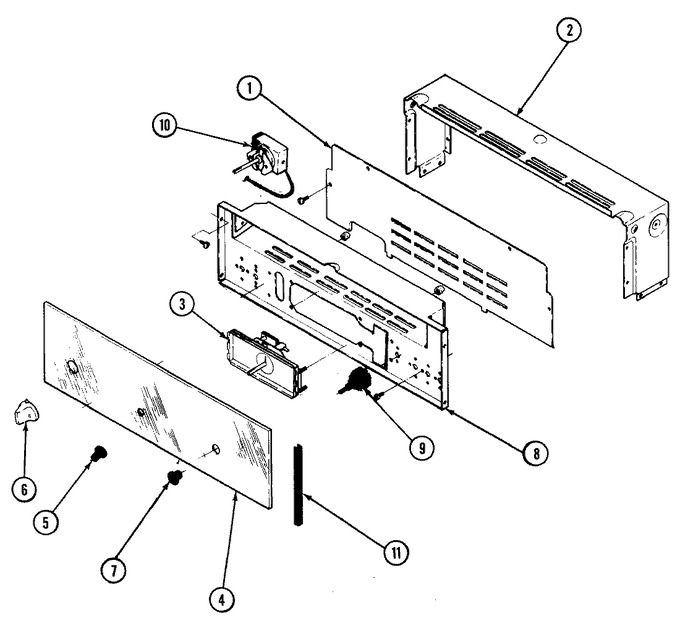

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F151-51 | Cover, Rear Wire | 01 |
|
- | ||||
| 1 | 7101P239-60 | Screw | 01 |
|
- | ||||
| 2 | 4005F153-51 | Cover, Wire | 01 |
|
- | ||||
| 3 | 7602P091-60 | Clock, Int. Timer | 01 |
|
- | ||||
| 4 | 7912P030-60 | Glass, Control Panel | 01 |
|
- | ||||
| 5 | 7711P007-60 | Knob, Clock | 01 |
|
- | ||||
| 6 | 74001254 | Knob, Thermostat (chr) | 11 |
|
$ 12.47 | ||||
| 6 | 7711P085-60 | Knob | 01 |
|
- | ||||
| 7 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 8 | 3605F170-80 | Plate, Switch | 01 |
|
- | ||||
| 9 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 10 | 7404P059-60 | Thermostat | 01 |
|
- | ||||
| 10 | 7404P098-60 | Thermostat | 11 |
|
$ 172.62 | ||||
| 11 | 3608F019-70 | Trim, Bkgd. Glass | 01 |
|
- | ||||
| 11 | 5180D144-60 | Harness Upper | 01 |
|
- |
