SELECT A DIAGRAM

01 - Control Panel

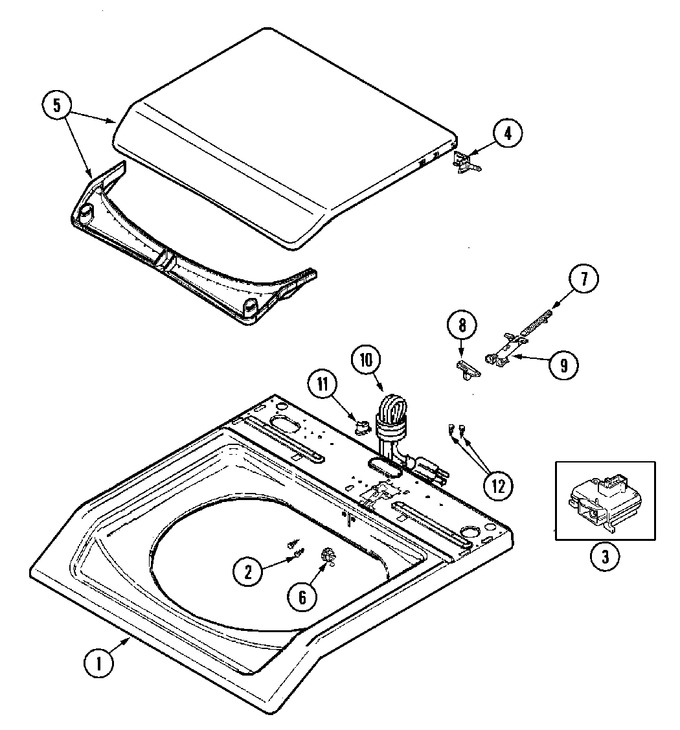

02 - Top


03 - Cabinet


04 - Tub


05 - Base


06 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002739		Cover, Top (wht)	10	Appelez-nous	-
002	2016090		Screw/washer (guide Tube)	10	Appelez-nous	-
003	22001967		Switch, Lid	10	Appelez-nous	-
004	WP22002751		Hinge Pin (wht)   (Replaces: 22002751)	10		Immediately	$ 7.05
005	22002766		Condensate Seal (bsq)	10	Appelez-nous	-
005	22002872		Lid, Washer (wht-w/medallion)	10	Appelez-nous	-
006	22002753		Bushing, Hinge	10			$ 5.84
007	WP22002754		Plunger   (Replaces: 22002754)	10		Immediately	$ 7.04
008	W10814230		Cam, Lid (wht)   (Replaces: 22002755)	10		Immediately	$ 7.25
009	WP22002757		Guide Tube   (Replaces: 22002757)	10		Immediately	$ 7.18
010	208194		Cord, Power	10	Appelez-nous	-
011	33002053		Grommet, Cord	10	Appelez-nous	-
012	00489128		Screw, Grounding   (Replaces: Y705026)	10			$ 773.97
