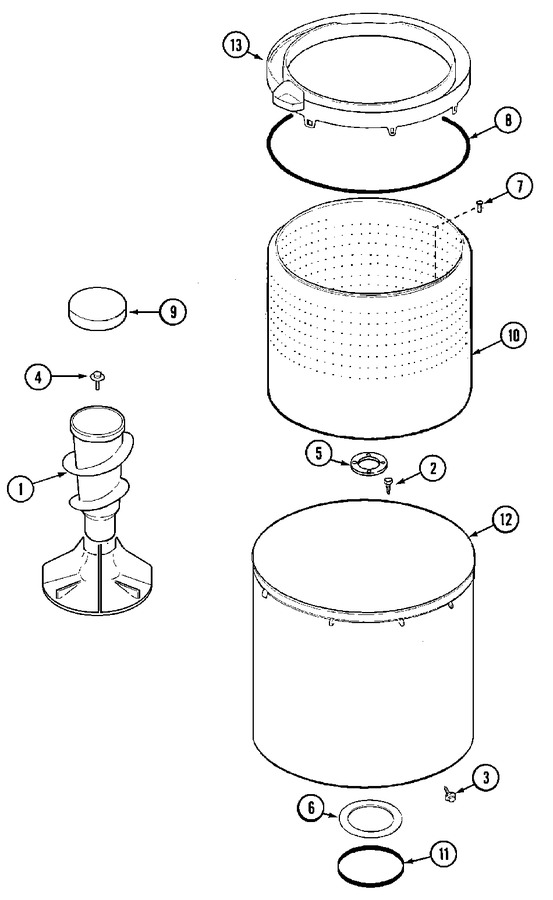

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP22004042 | Agitator (Replaces: 22002735) | 10 |
|
$ 277.06 | ||||
| 002 | WP22002947 | Screw, Tub (Replaces: 21001510) | 10 |
|
$ 10.51 | ||||
| 003 | WP22002933 | Screw, Tub (Replaces: 25-7953) | 10 |
|
$ 6.91 | ||||
| 004 | WPW10309247 | Bolt, Agitator (Replaces: 25-7948) | 10 |
|
$ 32.57 | ||||
| 005 | 35-3685 | Gasket, Basket | 10 |
|
$ 36.70 | ||||
| 006 | 35-3686 | Gasket, Tub | 10 |
|
$ 5.85 | ||||
| 007 | WP3400504 | Screw, Basket (Replaces: 25-7967) | 10 |
|
$ 6.47 | ||||
| 008 | 35-2328 | Seal, Tub Top | 10 |
|
$ 49.43 | ||||
| 009 | 21001528 | Cap, Agitator | 10 |
|
- | ||||
| 010 | 22002741 | Basket, Spin | 10 |
|
$ 158.89 | ||||
| 011 | 35-2978 | Seal, Tub | 10 |
|
$ 5.85 | ||||
| 012 | 22002742 | Tub Assembly | 10 |
|
$ 217.12 | ||||
| 013 | 22002736 | Top, Tub | 10 |
|
- |
