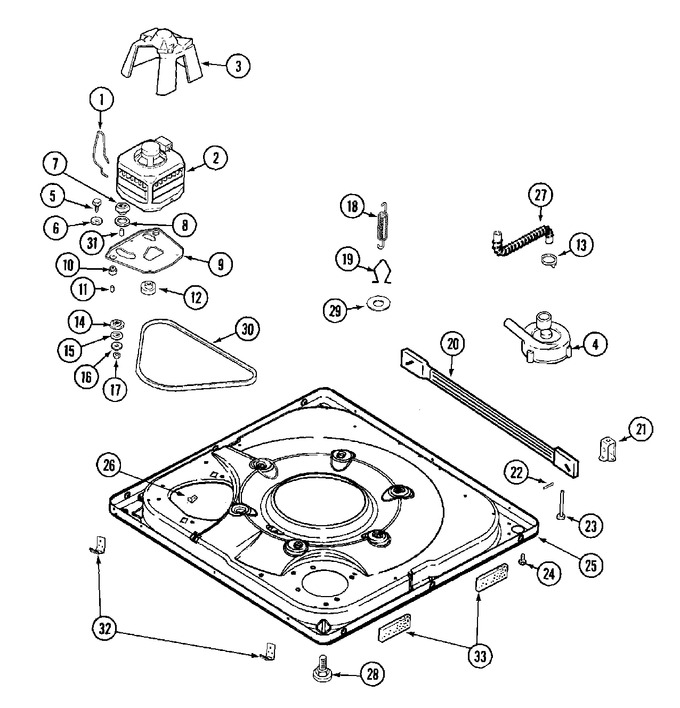

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Base
06 - Transmission
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP22004376 | Spring, Motor Pivot (Replaces: 21001110) | 10 |
|
$ 8.07 | ||||
| 002 | WP21001950 | Motor & Pulley Assy. (Replaces: 21001516) | 10 |
|
Immediately | $ 222.66 | |||
| 003 | 22002721 | Shield, Motor | 10 |
|
- | ||||
| 004 | WP35-6465 | Pump Assembly (complete) (Replaces: 35-2099) | 10 |
|
Immediately | $ 119.24 | |||
| 005 | 25-7833 | Screw, Motor/base | 10 |
|
- | ||||
| 006 | 25-7834 | Washer, Motor/base Screw | 10 |
|
- | ||||
| 007 | 33-9946 | Isolator, Motor | 10 |
|
$ 32.40 | ||||
| 008 | 35-3570 | Washer, Pivot | 10 |
|
$ 27.68 | ||||
| 009 | 21001111 | Plate, Motor | 10 |
|
- | ||||
| 009 | 35-2065 | Pad, Motor Plate | 10 |
|
- | ||||
| 010 | 21001486 | Foot Slide, Isolator | 10 |
|
$ 9.79 | ||||
| 010 | WP35-3646 | Isolator, Motor Plate (Replaces: 35-3646) | 10 |
|
$ 6.69 | ||||
| 011 | 25-7831 | Spacer, Mounting | 10 |
|
$ 8.04 | ||||
| 012 | WP21001950 | Pulley, Motor-60 Hz (Replaces: 21001506) | 10 |
|
Immediately | $ 222.66 | |||
| 013 | WP285655 | Clamp, Hose (Replaces: 25-6068) | 10 |
|
Immediately | $ 7.55 | |||
| 014 | 35-3571 | Slide, Motor | 10 |
|
$ 24.55 | ||||
| 015 | 33-9967 | Washer, Motor Isolator | 10 |
|
$ 5.27 | ||||
| 016 | 25-7047 | Washer, Flat | 10 |
|
$ 30.39 | ||||
| 017 | WPY707702 | Nut, Motor Plate Assembly (Replaces: 25-7325) | 10 |
|
Immediately | $ 6.26 | |||
| 018 | 21001165 | Spring, Suspension | 10 |
|
- | ||||
| 019 | WP21001166 | Hook, Suspension Spring (Replaces: 21001166) | 10 |
|
$ 6.93 | ||||
| 020 | 35-2049 | Bar, Stabilizer (with Guide) | 10 |
|
- | ||||
| 020 | 35-2052 | Pin, Stabilizer | 10 |
|
$ 6.02 | ||||
| 021 | 35-2046 | Bracket, Stabilizer | 10 |
|
$ 39.94 | ||||
| 022 | NLA | Guide, Stabilizer Bar | 10 |
|
- | ||||
| 023 | WP22004469 | Foot & Pad Assembly (rear) (Replaces: 35-3020) | 10 |
|
$ 14.52 | ||||
| 024 | WP308685 | Screw (Replaces: Y31001041) | 10 |
|
Immediately | $ 7.08 | |||
| 025 | 22002841 | Base | 10 |
|
- | ||||
| 026 | 25-7845 | Speednut, Motor | 10 |
|
- | ||||
| 027 | WP21001915 | Hose, Tub (Replaces: 35-3584) | 10 |
|
Immediately | $ 31.01 | |||
| 028 | 35-3507 | Foot & Pad Assembly (front) | 10 |
|
- | ||||
| 029 | Y25-7951 | Washer, Suspension Hook | 10 |
|
- | ||||
| 030 | WP22003483 | Belt, Drive (Replaces: 22002709) | 10 |
|
Immediately | $ 40.64 | |||
| 031 | 25-7830 | Spacer | 10 |
|
$ 8.39 | ||||
| 032 | 33002004 | Clip, Fastener | 10 |
|
- |
