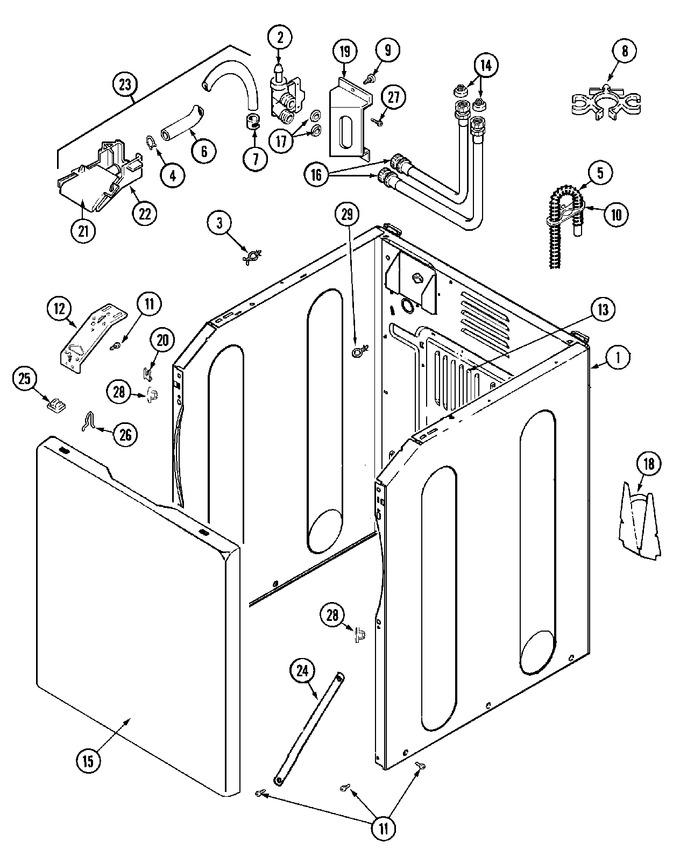

01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Base
06 - Transmission
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Cabinet Assy. (wht) | 10 |
|
- | ||||
| 002 | 22002707 | Valve, Water | 10 |
|
$ 89.29 | ||||
| 003 | 315471 | Retainer, Wire | 10 |
|
- | ||||
| 004 | WP285655 | Clamp, Spring----s (Replaces: 22002838) | 10 |
|
Immediately | $ 7.55 | |||
| 005 | 76660 | Anti-siphon Kit (accessory) (Replaces: 12001586) | 10 |
|
Immediately | $ 119.93 | |||
| 005 | WP22003410 | Hose, Drain (Replaces: 22002700) | 10 |
|
Immediately | $ 47.69 | |||
| 005 | WP285655 | Clamp, Drain Hose (Replaces: 25-7080) | 10 |
|
Immediately | $ 7.55 | |||
| 006 | 22002761 | Hose, Injector | 10 |
|
- | ||||
| 007 | WP596669 | Clamp, Injector Hose (Replaces: 216169) | 10 |
|
Immediately | $ 7.56 | |||
| 008 | WP22002765 | Clip, Hose (Replaces: 22002765) | 10 |
|
$ 10.58 | ||||
| 009 | 33002190 | Screw, Water Valve Bracket | 10 |
|
- | ||||
| 010 | 22002701 | Retainer, Drain Hose | 10 |
|
- | ||||
| 011 | W11573574 | Screw (no.12 X 1/2``) (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 012 | 22002839 | Brace, Cabinet (rt) | 10 |
|
- | ||||
| 012 | 22002840 | (rt) | 10 |
|
- | ||||
| 013 | 22002092 | Panel, Access | 10 |
|
- | ||||
| 014 | 200961 | Screen Washer, Inlet Hose | 10 |
|
- | ||||
| 015 | 22002663 | Panel, Front (bisq) | 10 |
|
- | ||||
| 016 | 22002763 | Inlet Hose Assy. (hot) | 10 |
|
- | ||||
| 016 | 22002764 | (cold) | 10 |
|
- | ||||
| 017 | Y013783 | Washer, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 018 | 22002704 | Cover, Drain Hose | 10 |
|
- | ||||
| 019 | 22002762 | Bracket, Water Valve | 10 |
|
- | ||||
| 020 | 22002748 | Fastener, Front Panel | 10 |
|
- | ||||
| 021 | 22002759 | Flume, Water Injector (upr) | 10 |
|
- | ||||
| 022 | 22002760 | Flume, Water Injector (lwr) | 10 |
|
- | ||||
| 023 | 22002722 | Injector Flume Assy. | 10 |
|
- | ||||
| 024 | 22002767 | Brace, Cross | 10 |
|
- | ||||
| 025 | 22002013 | Stop, Shipping | 10 |
|
$ 5.43 | ||||
| 026 | WP25-7220 | Clip, Cabinet Top (Replaces: 25-7220) | 10 |
|
$ 10.77 | ||||
| 027 | WP9740848 | Screw, Water Valve (Replaces: 22002362) | 10 |
|
Immediately | $ 7.07 | |||
| 028 | 22002229 | Strainer (hdwr.pkg.) | 10 |
|
- | ||||
| 028 | 33002388 | Washer (hdwr Pkg) | 10 |
|
- | ||||
| 028 | NLA | Screw (hdwr.pkg.) | 10 |
|
- | ||||
| 028 | Y013783 | Washer,inlet Hose (hdwr.pkg.) | 10 |
|
$ 18.72 | ||||
| 028 | Y22002702 | Tie, Beaded (hdwr.pkg.) | 10 |
|
- | ||||
| 028 | Y352890 | Cable Tie (hdwr.pkg.) | 10 |
|
- | ||||
| 029 | 22003086 | Clip, Air Dome Hose | 10 |
|
- |
