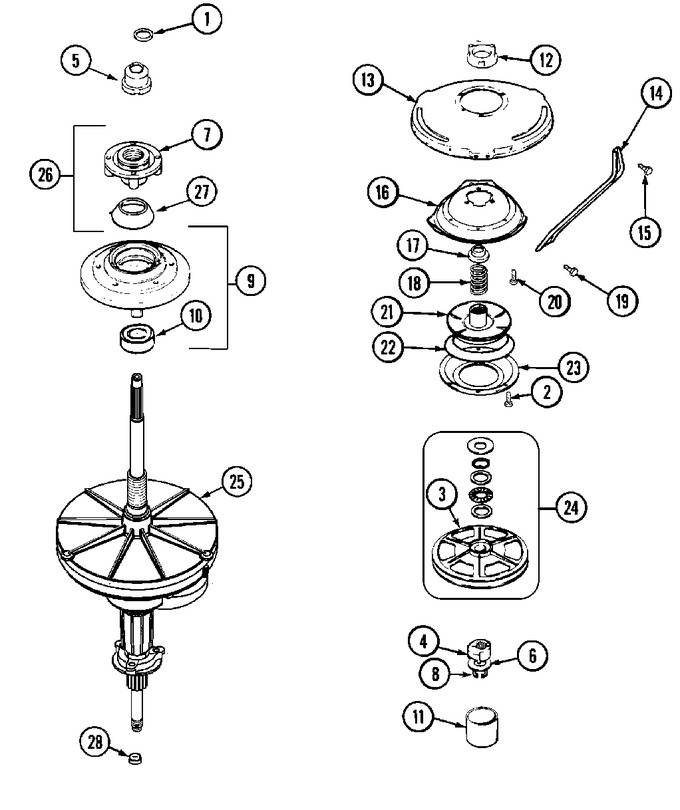

SELECT A DIAGRAM

01 - Control Panel


02 - Top


03 - Cabinet


04 - Tub


05 - Base


06 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	25-7941		``o`` Ring, Agtr Drive Shaft	10			$ 5.83
002	21001065		Screw, Stator	10			$ 5.27
003	12002213		Pulley, Drive (plastic)   (Replaces: 35-3829)	10		Immediately	$ 98.84
004	12002213		Cam Replacement Kit   (Replaces: LA-2007)	10		Immediately	$ 98.84
005	21001533		Seal Nut Assembly	10	Appelez-nous	-
006	35-2082		Washer, Flat	10			$ 5.61
006	WP35-2132		Washer, Flat   (Replaces: 35-2132)	10			$ 0.65
007	21001515		Basket Hub Assembly	10	Appelez-nous	-
008	WP25-7854		Ring, Retaining   (Replaces: 25-7854)	10			$ 10.68
009	21001508		Housing/bearing Assy.	10	Appelez-nous	-
010	35-2205		Bearing, Spin	10			$ 40.16
011	35-2007		Cap, Dust	10	Appelez-nous	-
012	21001511		Housing/lwr.bearing Assy.	10	Appelez-nous	-
012	35-2205		Bearing, Spin	10			$ 40.16
013	21001518		Support, Tub	10	Appelez-nous	-
014	21001532		Brace, Tub	10			$ 53.39
015	25-7895		Screw, Tub Brace	10	Appelez-nous	-
016	21001163		Housing, Suspension	10			$ 40.23
017	35-2017		Retainer, Brake Spring	10			$ 5.85
018	31001285		Spring, Brake	10	Appelez-nous	-
019	25-7930		Screw, Tub Brace	10	Appelez-nous	-
020	21001509		Screw, Suspension Housing	10			$ 33.21
021	35-2948		Brake Rotor & Lining Assembly	10	Appelez-nous	-
022	WP21002026		Snubber   (Replaces: 21001161)	10		Immediately	$ 9.68
023	35-2018		Stator, Brake	10	Appelez-nous	-
024	12002213		Thrust Bearing Kit   (Replaces: 12500036)	10		Immediately	$ 98.84
025	21001536		Transmission Assy.(dual Drive) Components Of This Assembly	10	Appelez-nous	-
026	12001598		Tub Seal Assembly--w (incl Tub Seal, Tub Gasket	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
