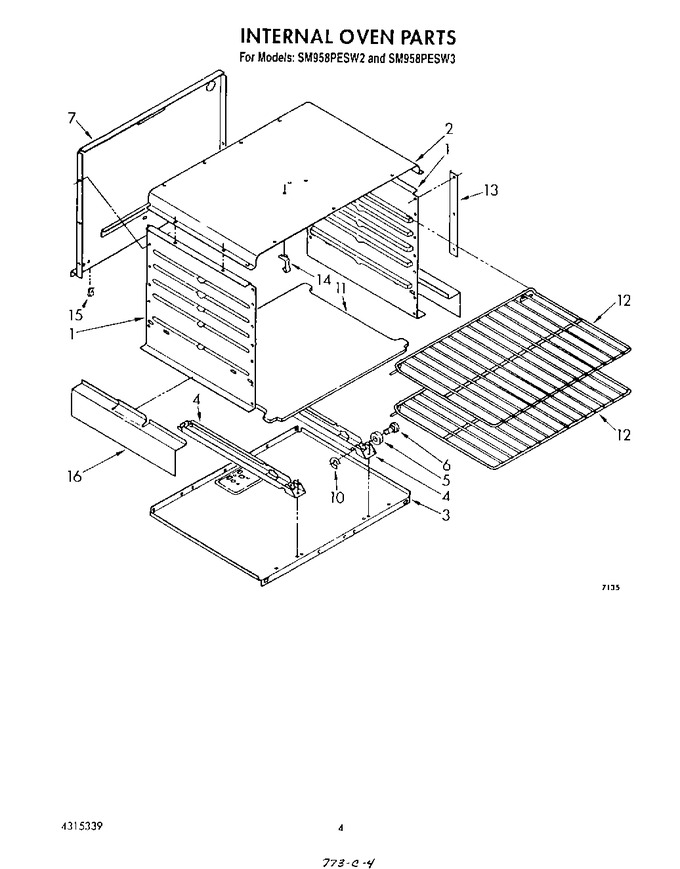

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-12 X 1/2 (6)   (Replaces: 4157111)			Immediately	$ 7.08
1	4315042		Liner, Oven Side (2)		Appelez-nous	-
2	4315046		Liner, Oven Top		Appelez-nous	-
2	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.08
3	4157004		Baffle, Bottom		Appelez-nous	-
4	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.08
4	4157007		Track, Broiler (2)		Appelez-nous	-
5	4157008		Roller (2)		Appelez-nous	-
6	4157009		Pin, Roller (2)		Appelez-nous	-
7	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157117)			Immediately	$ 7.08
7	4315055		Liner, Oven Back		Appelez-nous	-
10	4157026		Retainer, Roller (2)		Appelez-nous	-
11	4315072		Bottom, Oven		Appelez-nous	-
12	4157102		Rack, Oven (2)		Appelez-nous	-
13	4157328		Support, Liner (2)		Appelez-nous	-
14	98005642		Clip, Thermo Bulb   (Replaces: 4157329)			Immediately	$ 74.64
15	4157330		Clip, Speed		Appelez-nous	-
16	4315082		Shield, Radiation		Appelez-nous	-
