Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4157128 Bumper (4) Appelez-nous -
2 4157116 Screw, 8-18 X 3/8 (4) Appelez-nous -
2 4157028 Handle, Door Appelez-nous -
3 WP308685 Screw, 10-12 X 1/2 (5)   (Replaces: 4157117) In-Stock Immediately $ 7.08

3 4157029 Frame, Door Appelez-nous -
4 4157885 Glass Appelez-nous -
5 4157031 Ring, Hold Down Appelez-nous -
5 WP681414 Screw, 10-12 X 1/2 (5)   (Replaces: 4157114) In-Stock Immediately $ 7.07

6 4157032 Window Appelez-nous -
7 4157033 Insulation Appelez-nous -
8 WP681414 Screw, 10-12 X 1/2 (4)   (Replaces: 4157114) In-Stock Immediately $ 7.07

8 4157035 Support, Glass Appelez-nous -
8 4157115 Speed Clip (2) Appelez-nous -
9 4315062 Liner, Door Appelez-nous -
10 4157037 Support, Glass (2) Appelez-nous -
11 4157131 Plate (2) Appelez-nous -
12 4315263 Panel, Broiler Use W/sm958pesw2 (almond) Appelez-nous -
12 4315262 Panel, Broiler Use W/sm958pesw2 (white) Appelez-nous -
12 4157327 Panel, Broiler Use W/sm958pesw2 (almond Use W/sm958pesw3) Appelez-nous -
12 4157039 Panel, Broiler Use W/sm958pesw2 (white) Appelez-nous -
12 WP308685 Panel, Broiler Use W/sm958pesw2 (screw, 10-12 X 1/2 (5))   (Replaces: 4157117) In-Stock Immediately $ 7.08

13 4157208 Handle, Broiler Door Appelez-nous -
13 4157118 Screw, 10-12 X 5/8 (2) Appelez-nous -
13 4157119 Washer (2) Appelez-nous -
14 4157041 Spacer (2) Appelez-nous -
15 4315087 Liner, Broiler Door Appelez-nous -
16 4157043 Spring (2) Appelez-nous -
17 4157044 Track, Upper (2) Appelez-nous -
18 4315088 Liner, Broiler Appelez-nous -
18 WP308685 Screw, 10-12 X 1/2 (4)   (Replaces: 4157117) In-Stock Immediately $ 7.08

19 4396923 Pan, Broiler   (Replaces: 4315095) In-Stock Immediately $ 52.04

20 4315094 Grid Appelez-nous -
21 W10080180 Hinge, Door (screw, 10-24 X 3/8 (2))   (Replaces: 4157120) Special Order $ 12.13

21 4157049 Hinge, Door (l.h.) Appelez-nous -
21 4157048 Hinge, Door (r.h.) Appelez-nous -
21 WP308685 Hinge, Door (screw, 10-12 X 1/2 (4))   (Replaces: 4157111) In-Stock Immediately $ 7.08

22 4157050 Roller (2) Appelez-nous -
23 4157051 Pin, Roller (2) Appelez-nous -
24 W10080180 Nut (4)   (Replaces: 4157745) Special Order $ 12.13

25 4157053 Plate (2) Appelez-nous -
26 4157054 Screw (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

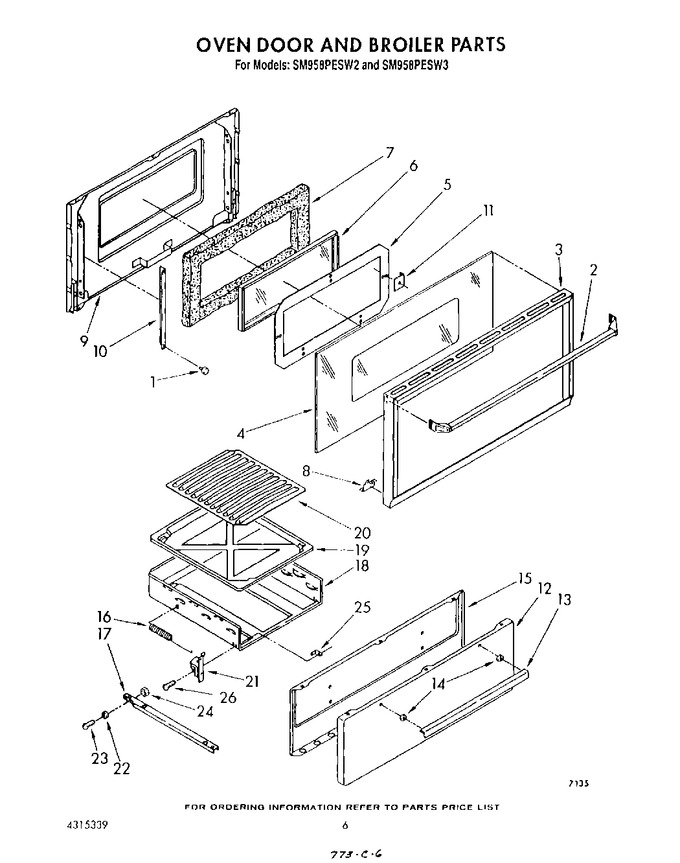

Diagram for SM958PESW2
