Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4179241 Support, Upper Oven (l.h.) Appelez-nous -
1 4179240 Support, Upper Oven (r.h.) Appelez-nous -
2 786499 Shield, Heat Appelez-nous -
3 4179349 Trim, Lower Appelez-nous -
4 4179360 Glass, Splashplate Appelez-nous -
5 786489 Trim, Glass Appelez-nous -
6 4179243 Trim, Rear Appelez-nous -
7 786460 Panel, Surface Light Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

8 3147593 Seal, Foam Appelez-nous -
8 312783 Bumper (4) Appelez-nous -
8 4179239 Panel, Bottom Appelez-nous -
9 3147649 Support, Side (l.h.) (white) Appelez-nous -
9 3147650 Support, Side (l.h.) (almond) Appelez-nous -
9 3147654 Support, Side (l.h.) (white) Appelez-nous -
9 3147655 Support, Side (l.h.) (almond) Appelez-nous -
10 4179242 Spacer, Wall Appelez-nous -
11 4179341 Panel, Cover Appelez-nous -
12 3147525 Clip (4) Appelez-nous -
13 3147606 Filter, Mesh (2) Appelez-nous -
14 3170224 Support, Frame Appelez-nous -
15 WP488729 Screw, 8-18 X 1/2 (6)   (Replaces: 313638) In-Stock Immediately $ 7.01

15 3170472 Top Panel Appelez-nous -
16 3148435 Deflector, Air Appelez-nous -
17 3147378 Nut (3) Appelez-nous -
18 3147817 Motor, Fan Appelez-nous -
19 3147866 Nut, Hex Appelez-nous -
19 3147798 Cover, Access Appelez-nous -
19 WP488729 Screw, 8-18 X 1/2 (4)   (Replaces: 313638) In-Stock Immediately $ 7.01

20 3170131 Frame Appelez-nous -
20 311945 Screw, 8-32 X 1/2 (4) Appelez-nous -
21 3147712 Panel, Vent Door Appelez-nous -
21 3147724 Screw, Shoulder (2) Appelez-nous -
21 3148294 Rivet, Plastic (2) Appelez-nous -
21 3147595 Seal, Foam (2) Appelez-nous -
21 3147596 Seal, Foam Appelez-nous -
21 3147751 Seal, Foam (4) Appelez-nous -
21 3147764 Spring, Vent Door (2) Appelez-nous -
21 3147858 Rivet (2) Appelez-nous -
22 313806 Screw, 6-32 X 9/32 (3) Appelez-nous -
22 3147710 Handle, Vent Door Appelez-nous -
23 3170269 Door, Vent Appelez-nous -
24 3147726 Cover, Exhaust Appelez-nous -
25 3147843 Damper Appelez-nous -
26 3148009 Flue, Air Appelez-nous -
26 WP488729 Screw, 8-18 X 1/2 (3)   (Replaces: 313638) In-Stock Immediately $ 7.01

27 312389 Motor, Fan Appelez-nous -
27 307602 Nut, Hex 6-32 (2) Appelez-nous -
28 WP488729 Screw, 8-18 X 1/2 (3)   (Replaces: 313638) In-Stock Immediately $ 7.01

28 310420 Mount, Fan Motor Appelez-nous -
29 307535 Blade, Fan Appelez-nous -
30 3147590 Seal, Foam Appelez-nous -
30 3148007 Separator, Air Appelez-nous -
31 3148008 Bushing, Snap Appelez-nous -
32 WPW10339879 Cable, Tie   (Replaces: 309330) Special Order $ 7.11

33 3147592 Side Panel, L.h. (seal, Foam (2) Side Panel, R.h.) Appelez-nous -
33 3147143 Side Panel L.h. (white) Appelez-nous -
33 3147145 Side Panel L.h. (almond) Appelez-nous -
33 3147147 Side Panel L.h. (toast) Appelez-nous -
33 3147149 Side Panel L.h. (platinum) Appelez-nous -
33 WP488627 Side Panel, L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156) Special Order $ 6.81

33 3147591 Side Pane, L.h. (seal, Foam (2)) Appelez-nous -
33 WP681414 Side Panel, L.h. (screw, 10-16 X 1/2 (6))   (Replaces: 343641) In-Stock Immediately $ 7.07

33 3147142 Side Panel, L.h. (white) Appelez-nous -
33 3147144 Side Panel, L.h. (almond) Appelez-nous -
33 3147146 Side Panel, L.h. (toast) Appelez-nous -
33 3147148 Side Panel, L.h. (platinum) Appelez-nous -
34 4179343 Spacer, Wall (horizontal) Appelez-nous -
35 3147607 Filter, Aluminum Appelez-nous -
35 3147525 Clip (2) Appelez-nous -
36 4179342 Deflector, Flue Appelez-nous -
37 4314934 Support, Maintop (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

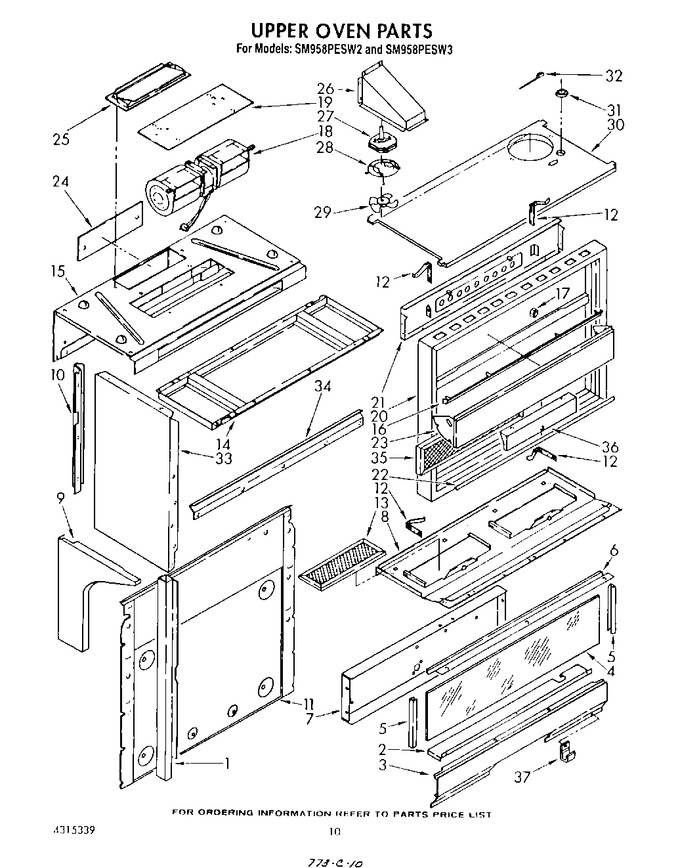

Diagram for SM958PESW2
