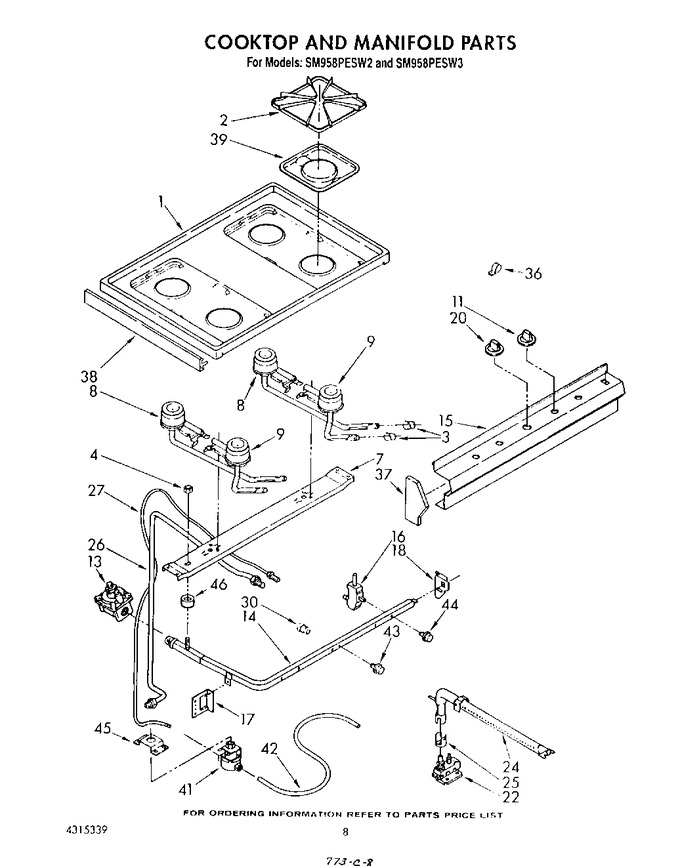

06 - Cook Top And Manifold


07 - Upper Oven


08 - Magnetron And Airflow


09 - Cabinet And Stirrer


10 - Control Panel


11 - Door And Latch


12 - Wiring Harness , Literature And Optional


13 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4179344		Cooktop (white)		Appelez-nous	-
1	4179345		Cooktop (almond)		Appelez-nous	-
2	4157196		Grate (4)		Appelez-nous	-
3	4157074		Shutter, Air (4)		Appelez-nous	-
4	4157075		Nut, Hex		Appelez-nous	-
7	4157078		Support, Burner		Appelez-nous	-
7	4157121		Screw, 10-12 X 3/8 (4)		Appelez-nous	-
8	4157206		Burner, Rear (2)		Appelez-nous	-
8	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
9	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
9	4157205		Burner, Front (2)		Appelez-nous	-
11	WP4179282		Knob, Burner (4)   (Replaces: 4157192)				$ 19.57
13	4157084		Regulator, Pressure		Appelez-nous	-
14	4179355		Manifold		Appelez-nous	-
14	WP308685		Screw, 10-12 X 1/2   (Replaces: 4157111)			Immediately	$ 7.08
15	4179353		Panel, Manifold		Appelez-nous	-
16	4179356		Valve, 180~ (4) (includes Ill. No. 44)		Appelez-nous	-
17	4157088		Support, Manifold (l.h.)		Appelez-nous	-
17	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4157111)			Immediately	$ 7.08
18	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157111)			Immediately	$ 7.08
18	4179357		Support, Manifold (r.h.)		Appelez-nous	-
20	WPY07506601		Knob, Thermostat   (Replaces: 4179283)				$ 61.11
22	4157094		Valve, Safety		Appelez-nous	-
22	WP3387230		Screw, 10-12 X 3/4 (2)   (Replaces: 4157125)			Immediately	$ 7.69
24	4179289		Burner, Oven		Appelez-nous	-
25	4157097		Shutter, Burner		Appelez-nous	-
26	4157098		Tubing 3/8`` (thermostat To Safety Valve)		Appelez-nous	-
27	4179104		Tubing 3/16`` (thermostat To Solenoid)		Appelez-nous	-
30	W10295523		Plug, Pipe 1/8``   (Replaces: 4157167)		Appelez-nous	-
36	4157185		Strain Relief		Appelez-nous	-
37	4157186		Endcap (l.h.)		Appelez-nous	-
37	4157187		Endcap (r.h.)		Appelez-nous	-
38	4179350		Trim, Cooktop (r.h.)		Appelez-nous	-
38	4179351		Trim, Cooktop (l.h.)		Appelez-nous	-
39	WP786333		Bowl, Chrome (4)   (Replaces: 4157194)				$ 16.83
41	4179103		Valve, Solenoid		Appelez-nous	-
42	4179105		Tubing 3/16`` (solenoid To Burner Pilot)		Appelez-nous	-
43	4314816		Bolt, Thermostat Mounting (2)		Appelez-nous	-
44	4314817		Bolt, Valve Mounting		Appelez-nous	-
45	4179110		Bracket, Solenoid		Appelez-nous	-
46	4315207		Spacer, Manifold		Appelez-nous	-
