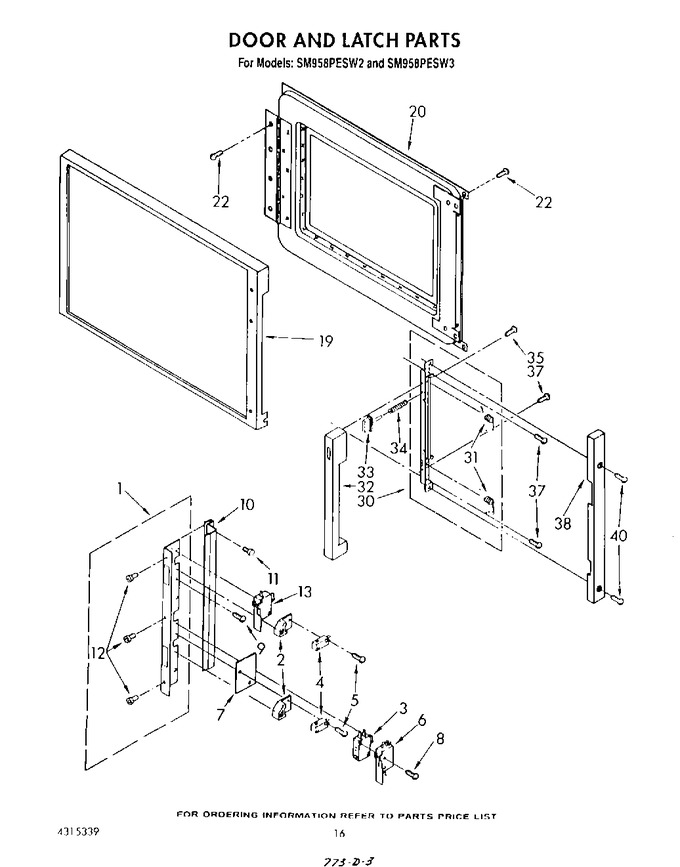

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 311354 Bracket, Catch Appelez-nous -
1 312713 Screw, 8-32 X 3/8 Appelez-nous -
2 311795 Catch (2) Appelez-nous -
3 661144 Switch Appelez-nous -
3 313075 Switch (alt.) Appelez-nous -
3 313123 Switch (alt.) Appelez-nous -
4 814037 Switch, Primary & Secondary Interlock (2) (alt.)   (Replaces: 313077) Special Order $ 81.32

4 814037 Switch, Primary & Secondary Interlock (2)   (Replaces: 661146) Special Order $ 81.32

4 814037 Switch, Primary & Secondary Interlock (2) (alt.)   (Replaces: 313125) Special Order $ 81.32

5 312717 Screw, 4-40 X 3/4 Pan Head Thread Form (4) Appelez-nous -
6 661145 Switch, Light/ Monitor Appelez-nous -
6 313076 Switch, Light Monitor (alt.) Appelez-nous -
6 313124 Switch, Light Monitor (alt.) Appelez-nous -
7 313126 Insulator Appelez-nous -
8 310211 Screw, 4-40 X 10 (2) Appelez-nous -
9 309080 Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground) Appelez-nous -
10 311360 Shield Appelez-nous -
11 313740 Fastener (2) Appelez-nous -
12 311928 Rivet, Pop (3) Special Order $ 5.33

13 313120 Switch, Miniture Appelez-nous -
19 3170441 Frame, Door Appelez-nous -
20 3171012 Door, Inner Appelez-nous -
22 WPW10068250 Screw, 8-32 X 19/32 Torx Truss Head (6)   (Replaces: 311777) Special Order $ 3.66

30 329066 Latch Assembly Appelez-nous -
31 303776 Screw 8-32 X 5/16   (Replaces: 313811) Appelez-nous -
31 311352 Spring, Torsion (2) Appelez-nous -
32 314169 Handle, Door Appelez-nous -
33 313611 Button, Door Handle   (Replaces: 314168) Special Order $ 35.65

34 310197 Spring, Compression Appelez-nous -
35 313820 Screw (2) Appelez-nous -
37 WP489128 Screw, 8-32 X 7/16   (Replaces: 311722) Special Order $ 9.79

38 3148297 End Cap Appelez-nous -
40 313823 Screw, 8-22 (5) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
