Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303285549 Trim-top Appelez-nous -
2 3202088 Bracket-clock Appelez-nous -
3 3202089 Clock Appelez-nous -
4 5303279413 Switch-light Appelez-nous -
5 5303291171 Thermostat Appelez-nous -
6 3204779 Switch-selector Appelez-nous -
7 5303276516 Plate-instrument Mtg Appelez-nous -
8 3202193 Indicator Light Appelez-nous -
9 3202093 Bumper Appelez-nous -
10 3203670 Trim-control Panel (2) Appelez-nous -
11 5303284615 Knob (3) Appelez-nous -
12 5303016305 Bezel - Switch Appelez-nous -
13 5303291172 Dial-thermostat Appelez-nous -
14 3202191 Lamp - Assy Dial (2) Appelez-nous -
15 3203884 Spacer, Dial, Selector Appelez-nous -
16 3204781 Dial-selector Appelez-nous -
17 3131730 Button-clock (4) Appelez-nous -
18 5303016292 Knob Timer Appelez-nous -
19 5303300762 Glass-control Panel Appelez-nous -
20 3202418 Housing-control Appelez-nous -
21 3203677 Cover-control Housing Appelez-nous -
22 3202416 Trim-center Vent Appelez-nous -
*87102 5303271453 Deflector-heat Appelez-nous -
*87102 5303209329 Extrusion Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

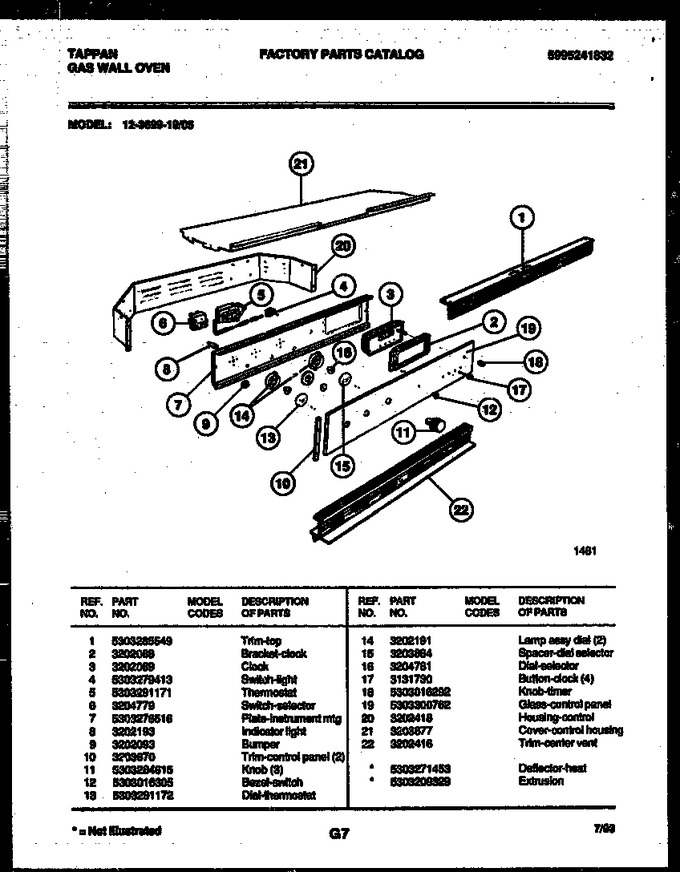

Diagram for 12-3699-00-05
