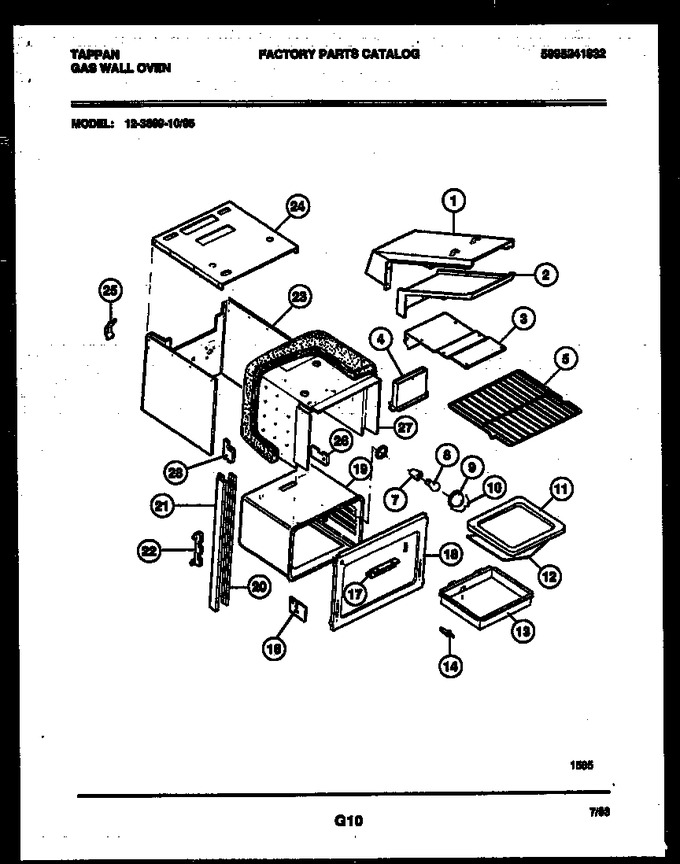

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204210		Shield Flue Top		Appelez-nous	-
2	3203725		Flue		Appelez-nous	-
3	3203686		Shield - Flue Bottom		Appelez-nous	-
4	3203730		Flue Adaptor		Appelez-nous	-
5	318345216		Oven Shelf   (Replaces: 5303296873)				$ 103.90
7	08011171		Receptacle		Appelez-nous	-
8	3201908		Bulb		Appelez-nous	-
9	5304524341		Oven Light Cover   (Replaces: 3201911)			Immediately	$ 14.18
10	3204483		Retainer-lens		Appelez-nous	-
11	5303300768		Bottom-oven		Appelez-nous	-
12	3203720		Baffle-oven Bottom		Appelez-nous	-
13	5303300771		Box-oven Burner		Appelez-nous	-
14	08015948		Switch - Oven Light		Appelez-nous	-
16	3019063		Retainer-door		Appelez-nous	-
17	3203685		Shield-vent		Appelez-nous	-
18	5303296866		Frame-front		Appelez-nous	-
19	5303300772		Liner (upper)		Appelez-nous	-
20	3203802		Trim-side Inner (rh)		Appelez-nous	-
21	5303291238		Trim-side Outer (2)		Appelez-nous	-
22	3201631		Channel, Hinge				$ 58.22
23	3203861		Wrapper		Appelez-nous	-
24	3203690		Wrapper, Top		Appelez-nous	-
25	3016281		Spring, Oven		Appelez-nous	-
26	3203680		Cover-capillary Tube		Appelez-nous	-
27	3203684		Shield-top & Sides		Appelez-nous	-
28	5303280338		End Cap, Rh		Appelez-nous	-
*87110	3204817		Plug, Button		Appelez-nous	-
*87110	5303280339		End Cap, Lh		Appelez-nous	-
*87111	3203660		Insulation-adaptor		Appelez-nous	-
20A	3203803		Trim-side Inner (lh)		Appelez-nous	-
25A	3016323		Insulation-wrapper (non-illustrated)		Appelez-nous	-
25B	3203801		Insulation-front Frame (non-illustrated)		Appelez-nous	-
25C	5303284616		Thermostat Bulb Clip (non-illustrated)				$ 9.86
