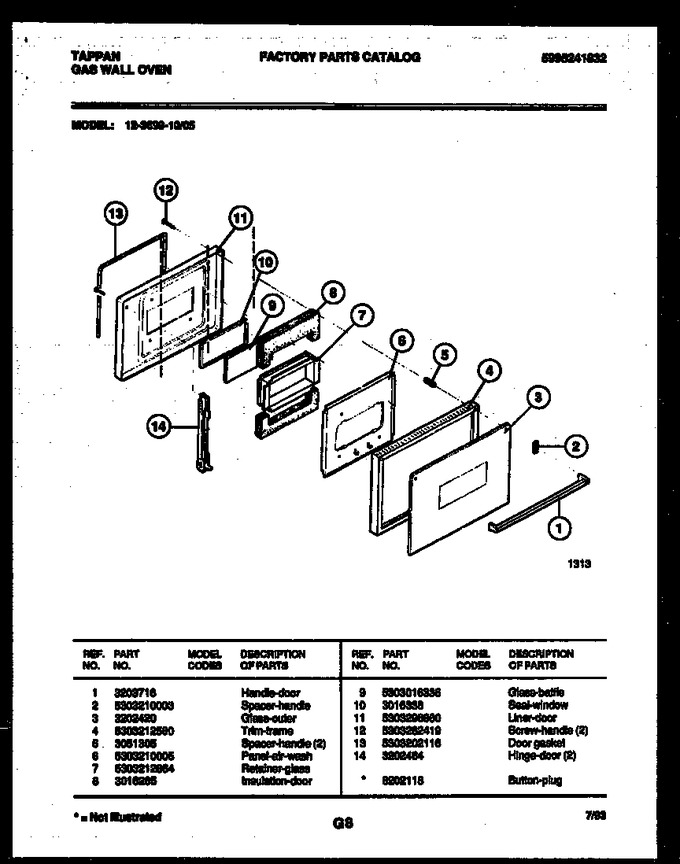

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203716 | Handle-door |
|
- | |||||
| 2 | 5303210003 | Spacer, Handle |
|
- | |||||
| 3 | 3202420 | Glass-outer |
|
- | |||||
| 4 | 5303212560 | Trim - Frame |
|
- | |||||
| 5 | 3051305 | Spacer, Handle, (2) |
|
- | |||||
| 6 | 5303210005 | Panel - Air Wash |
|
- | |||||
| 7 | 5303212864 | Retainer-glass |
|
- | |||||
| 8 | 3016265 | Insulation-door |
|
- | |||||
| 9 | 5303016336 | Glass-baffle |
|
- | |||||
| 10 | 3016338 | Seal-window |
|
$ 43.20 | |||||
| 11 | 5303296860 | Liner-door |
|
- | |||||
| 12 | 5303282419 | Screw-handle (2) |
|
- | |||||
| 13 | 5303202116 | Door Gasket |
|
$ 136.08 | |||||
| 14 | 3202464 | Hinge-door (2) |
|
- | |||||
| *87105 | 3202113 | Button, Plug |
|
- |
