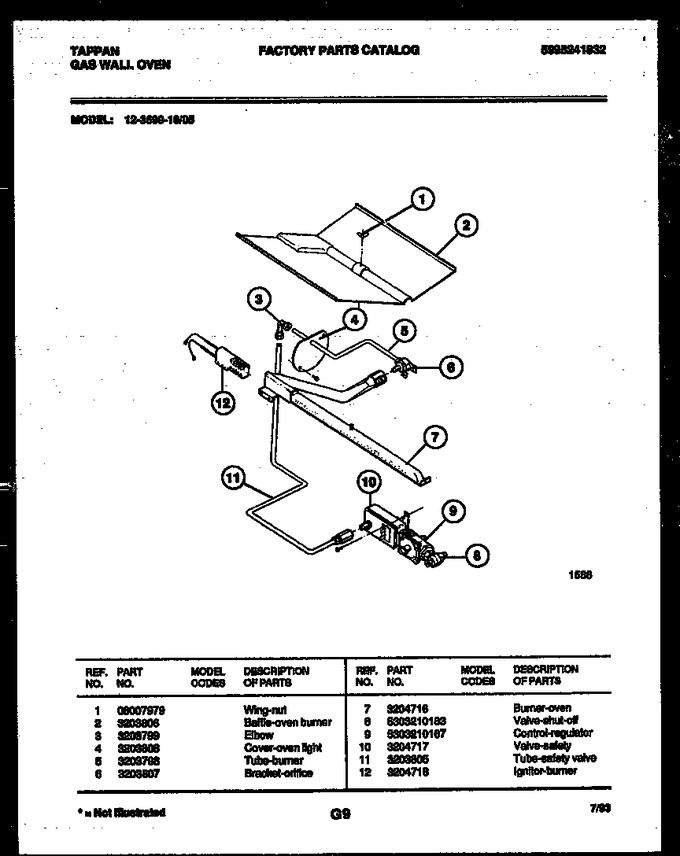

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007979 | Wing Nut |
|
- | |||||
| 2 | 3203806 | Baffle-oven Burner |
|
- | |||||
| 3 | 3203799 | Elbow |
|
- | |||||
| 4 | 3203808 | Cover-oven Light |
|
- | |||||
| 5 | 3203798 | Tube Burner |
|
- | |||||
| 6 | 3203807 | Bracket-orifice |
|
- | |||||
| 7 | 3204716 | Burner-oven |
|
- | |||||
| 8 | 5303210183 | Valve Shut Off |
|
- | |||||
| 9 | 5303210167 | Control-regulator |
|
- | |||||
| 10 | 3204717 | Valve-safety |
|
- | |||||
| 11 | 3203805 | Tube-safety Valve |
|
- | |||||
| 12 | 3204718 | Ignitor-burner |
|
- |
