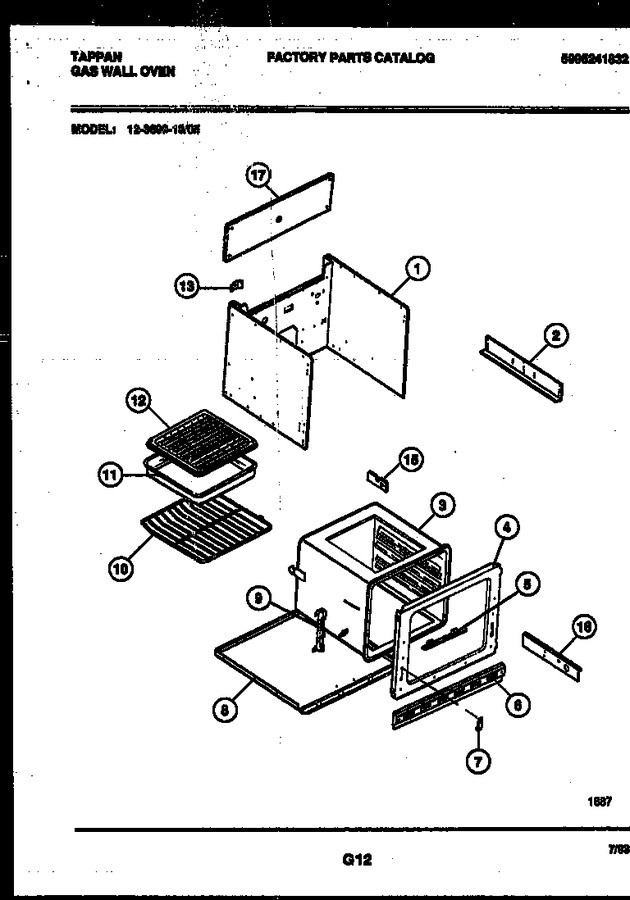

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202448 | Wrapper |
|
- | |||||
| 2 | 3016278 | Support, Height (2) |
|
- | |||||
| 3 | 5303300773 | Liner-oven |
|
- | |||||
| 4 | 5303296866 | Frame-front |
|
- | |||||
| 5 | 3204727 | Retainer-oven Bottom |
|
- | |||||
| 6 | 5303299368 | Lower Oven Trim |
|
- | |||||
| 7 | 3019063 | Retainer-door |
|
- | |||||
| 8 | 3202447 | Wrapper-base |
|
- | |||||
| 9 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 10 | 318345216 | Oven Shelf (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 11 | 5303286736 | Pan Broiler |
|
- | |||||
| 12 | 5303286735 | Insert-broiler Pan |
|
- | |||||
| 13 | 3016281 | Spring, Oven |
|
- | |||||
| 15 | 5303203729 | Retainer-oven Bottom (2) |
|
- | |||||
| 16 | 3204719 | Bracket-manifold |
|
- | |||||
| 17 | 3203810 | Cover-back |
|
- | |||||
| *87113 | 3203699 | Cord Power |
|
- | |||||
| 13A | 3203800 | Insulation-top (non-illustrated) |
|
- | |||||
| 13B | 3203809 | Cover-wire (non-illustrated) |
|
- |
