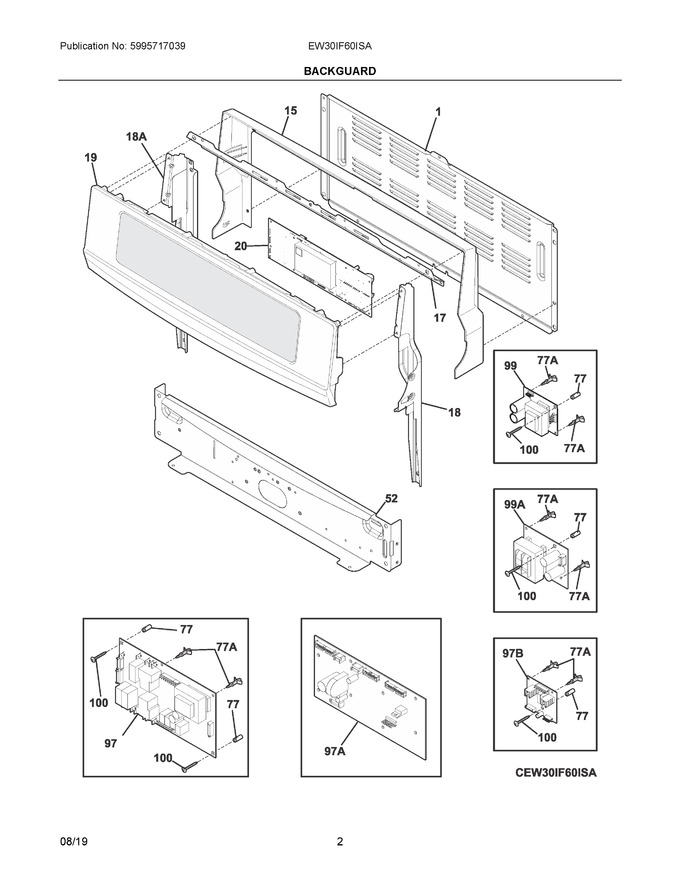

01 - Cover Sheet


02 - Backguard


03 - Induction Unit


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316500100		Shield, Rear Wall		Appelez-nous	-
15	316500401		Wrapper, Backguard, Black				$ 148.94
17	316500301		Shield, Upper, Backguard		Appelez-nous	-
18	316526000		Channel, Support, Rh, Backguard		Appelez-nous	-
19	316538420		Control Panel Assembly, User Interface, W/ss Trim				$ 2,717.78
20	316576644		Clock/timer, Electronic, Es630a				$ 349.89
52	316509805		Shield, Backguard, Black, Inner		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 44.65
97	316443920		Board, Relay, Oven Control			Immediately	$ 403.75
99	316535200		Board, Power Supply, 8v, (2)				$ 408.36
100	5303289910		Screw, 8a, 1				$ 5.67
18A	316526001		Channel, Support, Lh, Backguard		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
97A	316576414		Board, Power, Uib				$ 366.02
97B	316519200		Board, Variable Speed			Immediately	$ 256.24
99A	316435705		Board, Power Supply				$ 396.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316533900		Screw, Truss Hd, 8-16 X 1.5, (10)				$ 12.02
NI	316457000		Retainer, Wire, P-lock, Stick On		Appelez-nous	-
NI	316304600		Plate, Mounting, Power Board		Appelez-nous	-
NI	316525640		Harness, Wiring, Backguard				$ 109.46
NI	316525641		Harness, Wiring, Uib, To Filter Board				$ 83.21
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
