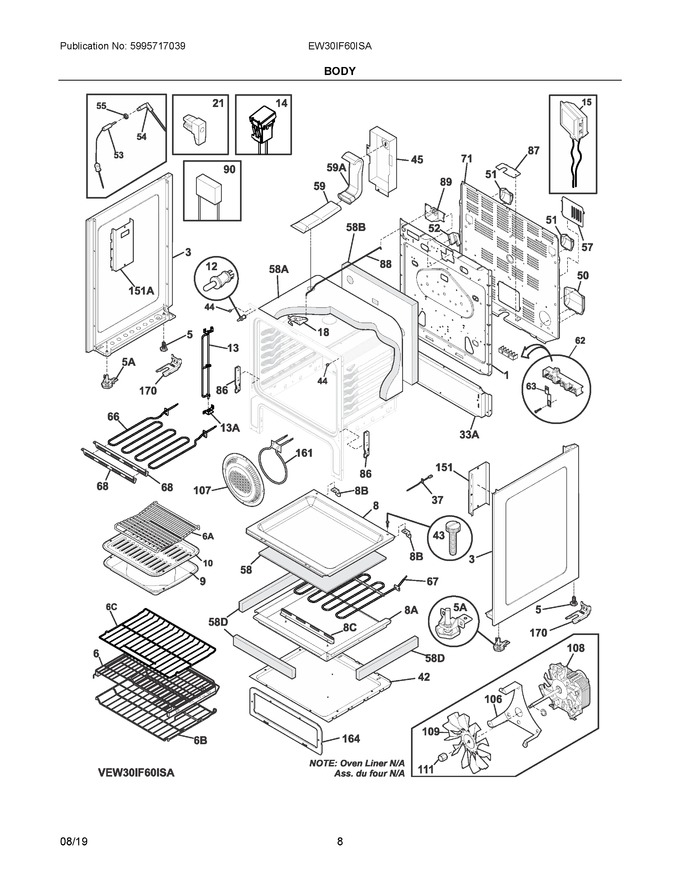

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316502004 | Back, Main |
|
- | |||||
| 3 | 316400144 | Panel, Bodyside, Black, Rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 5 | 316272900 | Screw, Leveling, Plastic, Rear, (2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316571800 | Rack Assembly, W/glides |
|
$ 290.93 | |||||
| 8 | 316505602 | Panel, Cobalt, Oven Bottom |
|
$ 158.06 | |||||
| 9 | 316081901 | Pan, Broiler, Cobalt Blue |
|
$ 74.32 | |||||
| 10 | 316082001 | Insert, Broiler Pan, Cobalt Blue |
|
$ 53.09 | |||||
| 12 | 316445500 | Switch, Oven Light, Door Frame |
|
Immediately | $ 54.74 | ||||
| 13 | 316528904 | Lever Assembly, Rack Sensing |
|
$ 98.70 | |||||
| 14 | 316508301 | Switch Assembly, Rack Sensing |
|
$ 207.03 | |||||
| 15 | 316510701 | Lamp, Oven, (2), Halogen |
|
$ 157.97 | |||||
| 18 | 316405800 | Latch Assembly, Oven Door |
|
Immediately | $ 56.74 | ||||
| 21 | 316408000 | Clip, Bodyside |
|
$ 18.20 | |||||
| 37 | 316490000 | Probe, Oven Temp |
|
Immediately | $ 58.30 | ||||
| 42 | 316407700 | Shield, Wool, Lower |
|
$ 131.19 | |||||
| 43 | 316282700 | Screw, W/washer, 8-18 |
|
$ 9.93 | |||||
| 44 | 316517600 | Spacer, Oven Door |
|
$ 12.05 | |||||
| 45 | 316509900 | Shield, Vent Tube |
|
- | |||||
| 48 | 316301600 | Shield, Lower |
|
- | |||||
| 49 | 316301700 | Insulation, Lower Shield |
|
- | |||||
| 50 | 316302600 | Cover, Air Inlet |
|
$ 33.18 | |||||
| 51 | 316302700 | Cover, Air Outlet |
|
- | |||||
| 52 | 316302000 | Bracket, Wiring, Crosover, Induction |
|
- | |||||
| 53 | 5304504202 | Probe, Meat Temp (Replaces: 318601302) |
|
Immediately | $ 106.19 | ||||
| 54 | 316536902 | Receptacle, Probe |
|
$ 143.59 | |||||
| 55 | 316247700 | Nut, Mounting |
|
$ 18.20 | |||||
| 57 | 316457801 | Cover, Access |
|
$ 12.89 | |||||
| 58 | 316509500 | Insulation, Bake Element |
|
$ 45.09 | |||||
| 59 | 316208402 | Vent Tube, Assembly, W/catalyst |
|
$ 38.27 | |||||
| 62 | 5303935271 | Terminal Block Kit |
|
$ 73.56 | |||||
| 63 | 316542600 | Plate, Grounding Strap |
|
- | |||||
| 66 | 5304511881 | Element, Broil (Replaces: 316506300) |
|
Immediately | $ 81.14 | ||||
| 67 | 316301800 | Element, Hidden Bake |
|
$ 238.93 | |||||
| 68 | 316506401 | Support, Broil Element, (2) |
|
- | |||||
| 71 | 316302501 | Sheild, Rear Wall |
|
- | |||||
| 86 | 316580700 | Receptacle, Hinge, (2) (Replaces: 316508600) |
|
Immediately | $ 30.47 | ||||
| 87 | 316081200 | Bracket, Cable Mtg |
|
- | |||||
| 88 | 316203500 | Rod, Auto Latch |
|
$ 72.30 | |||||
| 89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| 90 | 316539900 | Filter, Noise, Lock Motor, Suppressor |
|
$ 68.61 | |||||
| 106 | 316404100 | Bracket, Motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026702 | Cover, Fan |
|
$ 67.94 | |||||
| 108 | 316256100 | Motor-fan |
|
Immediately | $ 211.18 | ||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 151 | 316404600 | Shield, Bodyside |
|
$ 49.30 | |||||
| 161 | 316211603 | Element, Convection Fan, 350 W |
|
$ 255.86 | |||||
| 164 | 316410302 | Trim, Front, Cobalt, Mini Oven |
|
$ 39.53 | |||||
| 170 | 316112005 | Anti Tip Kit, Assembly (Replaces: 316112004) |
|
Immediately | $ 18.91 | ||||
| 13A | 316543000 | Bracket, Lever, Lower, Rack Sensing |
|
$ 20.80 | |||||
| 151A | 316404601 | Shield, Bodyside |
|
$ 21.27 | |||||
| 33A | 316402100 | Shield, Rear Wall, Lower |
|
$ 47.30 | |||||
| 3A | 316400145 | Panel, Bodyside, Black, Lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 58A | 316406604 | Insulation, Oven Wrapper (Replaces: 316406601) |
|
Immediately | $ 69.77 | ||||
| 58B | 316301500 | Insualtion, Oven Back |
|
- | |||||
| 58D | 316509700 | Insulation, Oven Bottom |
|
$ 60.25 | |||||
| 59A | 316510000 | Vent Tube, Oven, Upper |
|
$ 41.53 | |||||
| 5A | 5304509869 | Leveling Leg Assy, Metal, Front, (2), Bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 318219500 | Rack, Broiler Pan |
|
- | |||||
| 6B | 316496205 | Rack, Oven |
|
$ 134.67 | |||||
| 6C | 316496201 | Rack, Oven (Replaces: 316496207) |
|
Immediately | $ 103.48 | ||||
| 8A | 316505701 | Base, Bake Element |
|
$ 244.44 | |||||
| 8B | 316506000 | Bracket, Support, Oven Bottom, (2) |
|
$ 4.55 | |||||
| 8C | 316505801 | Support, Element |
|
$ 25.48 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 3131737 | Washer, Black |
|
$ 5.59 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303289910 | Screw, 8a, 1 |
|
$ 5.67 | |||||
| NI | 316580257 | Harness, Wiring, Main |
|
$ 179.60 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316279600 | Screw, Bracket, Stiffener, (4) |
|
$ 12.05 | |||||
| NI | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black |
|
$ 13.46 | |||||
| NIA | 316534100 | Washer, Flat, Meat Probe |
|
$ 14.89 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIA | 316112005 | Bracket, Anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| NIB | 316116000 | Screw, Concrete, 1.75", Anti-tip Brkt |
|
$ 12.89 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIC | 316542200 | Insulator |
|
- | |||||
| NIC | 316541700 | Template, Anti-tip |
|
- |
