SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Induction Unit


04 - Body


05 - Top/drawer

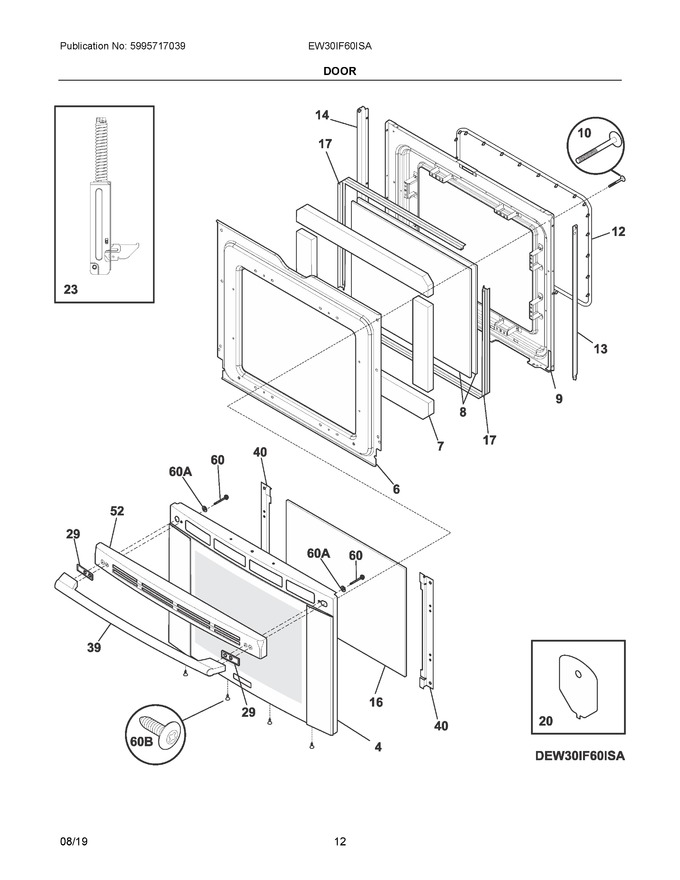

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316538310		Panel Assembly, Door Glass, W/badge, Outer, W/trim & Tape				$ 287.68
6	316503800		Shield, Wool				$ 106.89
7	316513000		Insulation, Oven Door				$ 81.50
8	316502500		Glass, Door, Inner, (2)			Immediately	$ 115.65
9	316503601		Liner, Oven Door, Cobalt				$ 160.49
10	316516801		Screw, Truss Hd, 10-24 X 3.5, (2)				$ 10.92
12	316405000		Seal, Oven Door   (Replaces: 316405001)			Immediately	$ 179.17
13	316502702		Trim, Door Filler, Black, Rh		Appelez-nous	-
14	316502703		Trim, Door Filler, Black, Lh		Appelez-nous	-
16	316502601		Glass, Door, Airwash   (Replaces: 316502600)			Immediately	$ 207.85
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
20	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316508701		Hinge Assembly, Door, Yellow, (2)		Appelez-nous	-
29	316505401		Spacer, Handle, Gray, (2)				$ 18.17
39	241881301		Handle, Door, Stainless				$ 170.06
40	316530403		Bracket-airwash Glass Wash				$ 33.18
52	316544602		Cap, Door, Stainless				$ 117.02
60	316433303		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513300)			Immediately	$ 31.17
60A	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 11.34
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316433607		Label, Anti-tip		Appelez-nous	-
NI	316525700		Screw, Hinge Mtg, 10-32 X 5/16, (4)				$ 8.56

    View Diagram in Separate Window       Print Part List
