01 - Cover Sheet


02 - Backguard

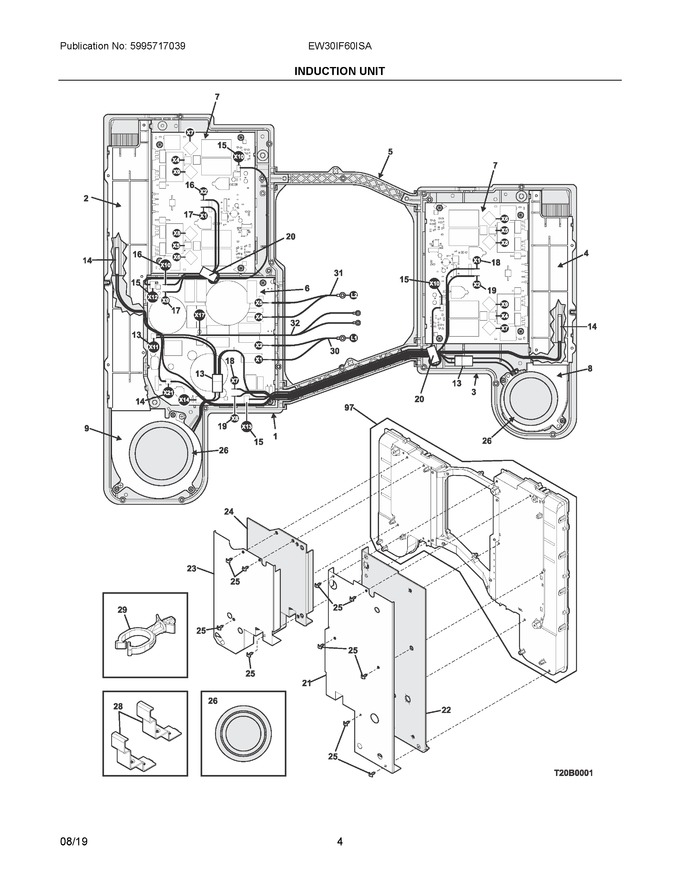

03 - Induction Unit


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316300500		Housing, Large, Induction   (Replaces: 316300100)			Immediately	$ 1,053.86
2	316300400		Cover, Large Housing, Air Channel		Appelez-nous	-
3	316300000		Housing, Small, Induction		Appelez-nous	-
4	316300300		Cover, Small Housing, Air Channel		Appelez-nous	-
5	316300200		Bracket, Bridge, Induction		Appelez-nous	-
6	316303600		Board, Filter, Induction				$ 863.02
7	316304300		Board, Generator, Induction		Appelez-nous	-
8	5303935297		Fan Assembly, Cooling, Small, Right Housing, W/seal Ring		Appelez-nous	-
9	5303935296		Fan Assembly, Cooling, Large, Left Housing, W/seal Ring		Appelez-nous	-
13	316303800		Harness Assembly, Cooling Fans, X11 To Fans		Appelez-nous	-
14	316303900		Sensor Assembly, Temperature, X21 To Sensors, Heat Sinks, W/harness		Appelez-nous	-
15	316304000		Cable, Ribbon, X12/x13 To X10, Filter, To Generator		Appelez-nous	-
16	316304100		Power Cable Set, Filter, 8", Black, To Generator, X10/x2		Appelez-nous	-
17	316304101		Power Cable Set, Filter, 8", Blue, To Generator, X9/x1		Appelez-nous	-
18	318052581		Power Cable Set, Filter, 18", Black, To Generator, X7/x1		Appelez-nous	-
19	318052582		Power Cable Set, Filter, 18", Blue, To Generator, X8/x2		Appelez-nous	-
20	316300500		Core, Magnetic, Toroid   (Replaces: 316304200)			Immediately	$ 1,053.86
21	316302800		Shield, Heat, Large Housing		Appelez-nous	-
22	316302300		Insulation, Housing, Large		Appelez-nous	-
23	316302900		Shield, Heat, Small Housing		Appelez-nous	-
24	316302400		Insulation, Housing, Small		Appelez-nous	-
25	316303100		Fastener, Mounting, (6)		Appelez-nous	-
26	316302202		Seals, Ring, 3.5" And 4.5", Fans, (2)		Appelez-nous	-
28	316301900		Bracket, Mounting, Induction Hsg.		Appelez-nous	-
29	316302100		Standoff, Wiring		Appelez-nous	-
30	5304519000		Harness, Wiring, L1 To X1-x2   (Replaces: 316525625)				$ 18.00
31	5304518999		Harness, Wiring, L2 To X4-x5   (Replaces: 316525626)				$ 19.42
32	316525616		Harness, Wiring, Aux. Ground		Appelez-nous	-
97	316300500		Control Assembly, Induction, Complete, W/boards & Fans			Immediately	$ 1,053.86
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316303502		Harness Assembly, Filter, Electrical, W/capacitors				$ 94.55
NI	316114100		Spacer				$ 60.96
