SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Induction Unit


04 - Body

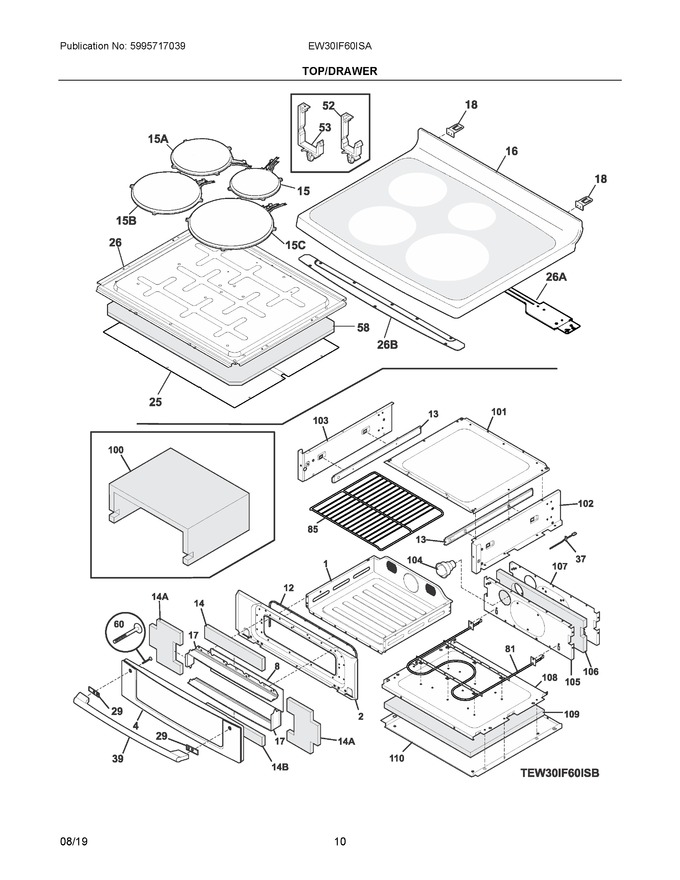

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414106		Drawer, Mini Oven, Cobalt		Appelez-nous	-
2	316510201		Liner, Drawer, Cobalt, Mini Oven				$ 60.96
4	316538206		Panel Assembly, Drawer Glass, Outer, W/trim & Tape				$ 285.60
8	316431901		Glass, Inner Door, Mini Oven				$ 52.36
12	316410700		Seal, Door, Mini Oven				$ 50.35
13	316449801		Glide, Drawer, Mini Oven, (2)				$ 129.51
14	316414202		Insulation, Door Top, Mini Oven				$ 12.08
15	316300600		Element Assembly, Induction, 6", Top Surface, W/wiring				$ 315.68
16	316470642		Main Top Assembly, Glass/steel, Black				$ 311.58
17	316508101		Spacer, Glass, (2)				$ 30.66
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
25	316301300		Shield, Heat, Induction		Appelez-nous	-
26	316301001		Panel, Mounting, Induction Coils		Appelez-nous	-
29	316505401		Spacer, Handle, Gray, (2)				$ 18.17
37	316490001		Probe, Oven Temp, Mini Oven			Immediately	$ 68.80
39	241881301		Handle, Door, Stainless				$ 170.06
52	316301200		Clip, Wiring, Natural, (2), Induction		Appelez-nous	-
53	316303400		Clip, Wiring, Black, (3)		Appelez-nous	-
58	316301400		Insualtion, Induction		Appelez-nous	-
60	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
81	316413902		Element, Bake, Mini Oven				$ 166.09
85	316411000		Rack, Mini Oven				$ 67.15
100	316410900		Insulation, Wrapper, Mini Oven		Appelez-nous	-
101	316410201		Panel, Top, Mini Oven		Appelez-nous	-
102	316431201		Panel, Oven Side, Rh, Mini Oven		Appelez-nous	-
103	316431203		Panel, Oven Side, Lh, Mini Oven		Appelez-nous	-
104	316431501		Light Assembly, Mini Oven				$ 61.36
105	316431303		Panel, Main Back, Mini Oven		Appelez-nous	-
106	316431400		Insualtion, Oven Back, Mini Oven		Appelez-nous	-
107	316431307		Shield, Main Back, Mini Oven		Appelez-nous	-
108	316410101		Panel, Bottom, Mini Oven		Appelez-nous	-
109	316410800		Insulation, Floor, Mini Oven		Appelez-nous	-
110	316410400		Shield, Floor, Mini Oven		Appelez-nous	-
14A	316414201		Insulation, Door Sides, Mini Oven, (2)				$ 12.08
14B	316414203		Insulation, Door Bottom, Mini Oven				$ 12.02
15A	316300700		Element Assembly, Induction Coil, 180 Mm				$ 354.69
15B	316300800		Element Assembly, Induction, 8", Top Surface, W/wiring				$ 342.04
15C	316300900		Element Assembly, Induction, 10", Top Surface, W/wiring				$ 351.28
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316501501		Bracket, Chassis Support, Front				$ 15.33
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316301100		Screw, Shoulder, Mounting, (9), Induction Coil		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316468100		Cleaner, Smoothtop, W/sponge				$ 4.88
