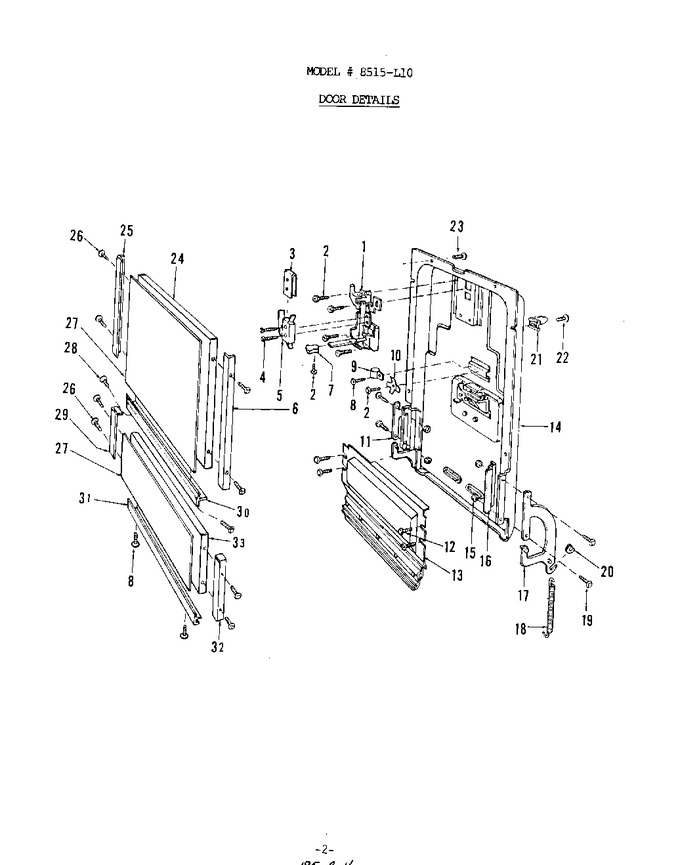

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807016		Latch Assembly		Appelez-nous	-
2	806830		Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl.		Appelez-nous	-
3	807450		Cover - Switch		Appelez-nous	-
4	808618		Screw 6-32x1``lg. Hex Hd. Cad. Pl.		Appelez-nous	-
5	807043		Switch		Appelez-nous	-
6	808850		Door Assembly Trim -rh		Appelez-nous	-
7	806398		Latch Knob		Appelez-nous	-
8	W11233072		Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
9	808442		Clamp		Appelez-nous	-
10	807213		Grounding Terminal		Appelez-nous	-
11	807539		Counterbalance Arm Assembly - L.h.		Appelez-nous	-
12	806810		Screw 8x3/8 Lg. C.r. Round Hd. St. St.		Appelez-nous	-
13	808370		Vent Plate Assembly		Appelez-nous	-
14	808578		Porcelain Weld Assembly		Appelez-nous	-
15	M0282009		Nut   (Replaces: 808470)				$ 12.06
16	COMM PART		Counterbalance Arm Mounting Bracket   (Replaces: 806717)		Appelez-nous	-
17	807538		Counterbalance Arm Assembly - R.h.		Appelez-nous	-
18	807534		Door Spring		Appelez-nous	-
19	803311		Screw 10-24x5/8 Lg. C.r. Truss Hd. Chr. Pl.		Appelez-nous	-
20	805884		Spring Pad		Appelez-nous	-
21	807537		Guide - Door		Appelez-nous	-
22	808749		Screw 8x5/8 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
23	806894		Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
24	COMM PART		Door Panel (white)   (Replaces: 808298)		Appelez-nous	-
25	808851		Door Panel Trim - L.h.		Appelez-nous	-
26	WP74004005		Screw 6x1/4 Lg. C.r. Truss Hd Chrome Pl.   (Replaces: 807293)				$ 6.95
27	COMM PART		Door & Access Panel Inserts (almond & G. Wheat)   (Replaces: 808299)		Appelez-nous	-
28	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
29	808104		Trim-access Panel L.h. Side		Appelez-nous	-
30	808323		Door Panel Trim - Bottom		Appelez-nous	-
31	808303		Access Panel Trim - Bottom		Appelez-nous	-
32	808103		Trim - Access Panel R.h. Side		Appelez-nous	-
33	808304		Access Panel (white)		Appelez-nous	-
