02 - Console Panel
03 - Door
04 - Tub
05 - Motor, Heater And Spray Arm
06 - Rack
07 - Frame
08 - Detergent Cup
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

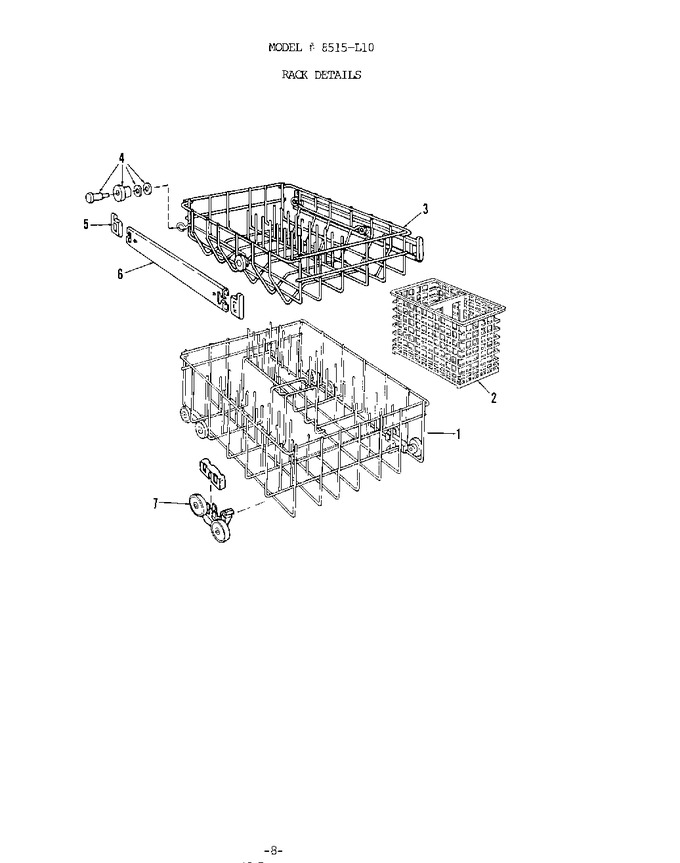

| 1 | 807683 | Rack Assembly-lower |
|
- | |||||
| 2 | 808845 | Silverware Basket |
|
- | |||||
| 3 | 807684 | Rack Assembly-upper |
|
- | |||||
| 4 | COMM PART | Wheel Assembly (Replaces: 807245) |
|
- | |||||
| 5 | 807234 | Rack Slide - End Cap |
|
- | |||||
| 6 | 807568 | Rack Slide |
|
- | |||||
| 7 | 807008 | Wheel & Bracket Assembly (4) |
|
- |
