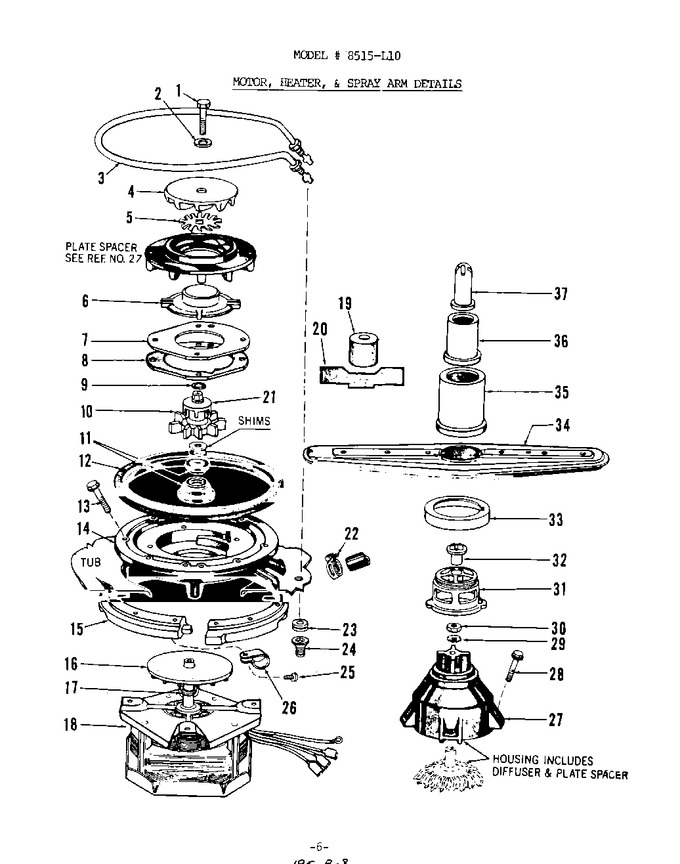

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806353		Screw 10-32x2 1/4 Lg. Hex Hd. St. St.		Appelez-nous	-
2	803367		Washer		Appelez-nous	-
3	806864		Heater (includes Key Nos. 23 & 24)		Appelez-nous	-
4	808041		Impeller - Upper		Appelez-nous	-
5	808075		Blade - Macerator		Appelez-nous	-
6	806267		Shroud - Impeller		Appelez-nous	-
7	807884		Plate - Pump		Appelez-nous	-
8	5300807709		Gasket - Pump   (Replaces: 807709)				$ 54.26
9	806521		``o`` Ring		Appelez-nous	-
10	808722		Pump Seal Kit (includes Key Nos. 2,4,5,9,11,20,21)		Appelez-nous	-
11	803903		Water Seal		Appelez-nous	-
12	807710		Pump Gasket		Appelez-nous	-
13	807268		Screw 10x1 Lg. Hex Washer Hd. St. St.		Appelez-nous	-
14	808700		Pump Housing		Appelez-nous	-
15	807712		Clamp Ring (2)		Appelez-nous	-
16	808899		Watershield Fan (includes Key No. 17)		Appelez-nous	-
17	808898		Tolerance Ring		Appelez-nous	-
18	806300		Motor Assembly (includes Key Nos. 1,9,16, 20)		Appelez-nous	-
19	803923		Seal Installation Tool		Appelez-nous	-
20	807077		Gage - Seal Shim		Appelez-nous	-
21	808699		Impeller Ring		Appelez-nous	-
22	806090		Drain Hose Clamp		Appelez-nous	-
23	5300806833		Grommet - Heater   (Replaces: 806833)				$ 5.34
24	154106202		Heater Nut 1/2 20 Brass   (Replaces: 806834)			Immediately	$ 18.32
25	807270		Screw 8 X 5/8 Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
26	808442		Clamp		Appelez-nous	-
27	806978		Pump Housing Kit (includes Key Nos. 6 & 7)		Appelez-nous	-
28	807359		Screw 10 X 1 3/4 Lg. Hex Hd. St. St.		Appelez-nous	-
29	COMM PART		Lockwasher   (Replaces: 804526)		Appelez-nous	-
30	316205500		Nut   (Replaces: 804527)				$ 11.34
31	808175		Bearing		Appelez-nous	-
32	808176		Spray Arm Nut		Appelez-nous	-
33	808924		Shield Bearing		Appelez-nous	-
34	808848		Spray Arm Assembly		Appelez-nous	-
35	808178		Tower Base		Appelez-nous	-
36	808179		Tower Section		Appelez-nous	-
37	808849		Tower Tip		Appelez-nous	-
