SELECT A DIAGRAM
02 - Console Panel
03 - Door
04 - Tub
05 - Motor, Heater And Spray Arm
06 - Rack

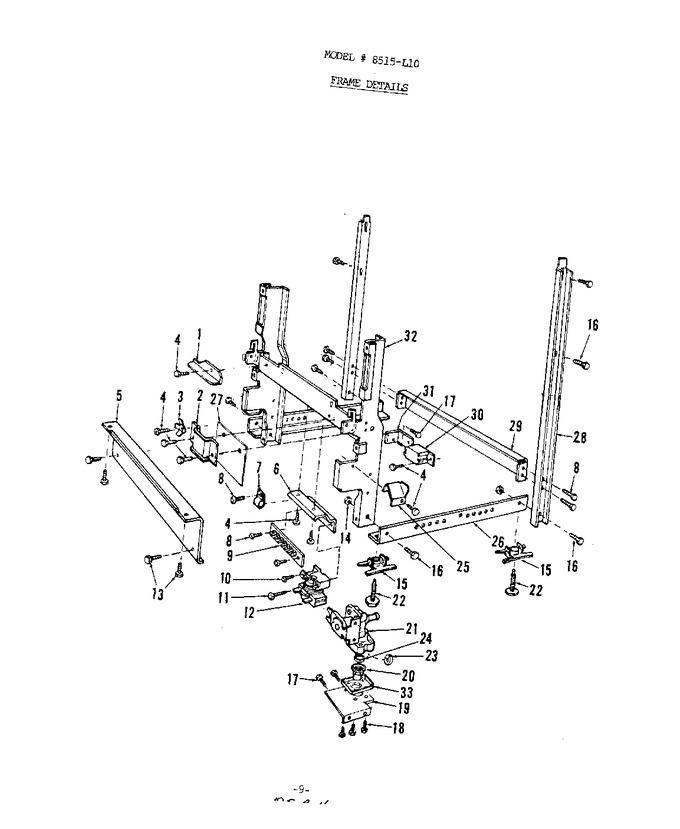

07 - Frame
08 - Detergent Cup
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807558 | Suds Deflector L.h. |
|
- | |||||
| 2 | 806723 | Clamp - Wiring |
|
- | |||||
| 3 | 807213 | Grounding Terminal |
|
- | |||||
| 4 | WP90767 | Screw 8x3/8 Lg. C.r. Hex Washer Hd. Chrome Pl. (Replaces: 808658) |
|
Immediately | $ 7.04 | ||||
| 5 | 807559 | Toeplate |
|
- | |||||
| 6 | 807675 | Terminal Block Bracket |
|
- | |||||
| 7 | 808442 | Clamp |
|
- | |||||
| 8 | 807501 | Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl. |
|
- | |||||
| 9 | COMM PART | Terminal Block Assembly (Replaces: 807486) |
|
- | |||||
| 10 | WP488234 | Screw 8-32x1/4 Lg. C.r. Pan Hd. Cad. Pl. (Replaces: 806593) |
|
$ 6.07 | |||||
| 11 | 804672 | Screw 8-32x1 1/4 Lg. C.r. Oval Hd. Cad. Pl. |
|
- | |||||
| 12 | 805255 | Motor Relay |
|
- | |||||
| 13 | 807001 | Screw 1/4-20x1/2 Lg. Hex Washer Slotted Hd.black |
|
- | |||||
| 14 | M0282005 | Nut (Replaces: 804619) |
|
$ 7.07 | |||||
| 15 | 807671 | Teenut - Snap- In |
|
- | |||||
| 16 | 806889 | Screw 1/4-20x15/32 Lg. Hex Washer Hd. Black |
|
- | |||||
| 17 | 807950 | Screw 10bx1/2 Lg. Hex Slot Hd. Cad. Pl. |
|
- | |||||
| 18 | 808368 | Screw 8-18bx5/8 Lg. Hex Hd. Zinc Pl. |
|
- | |||||
| 19 | 807613 | Valve Mounting Bracket |
|
- | |||||
| 20 | 808337 | Inlet Fitting |
|
- | |||||
| 21 | DW53 | Water Valve Kit (includes Key Nos. 23 & 24) (Replaces: 808668) |
|
$ 44.41 | |||||
| 22 | 807672 | Leveler |
|
- | |||||
| 23 | 808469 | Flow Washer |
|
- | |||||
| 24 | 806100 | Gasket |
|
- | |||||
| 25 | 807563 | Suds Deflector R.h. |
|
- | |||||
| 26 | 807564 | Angle Base |
|
- | |||||
| 27 | COMM PART | Wire Shield (Replaces: 808013) |
|
- | |||||
| 28 | 808670 | Support Channel |
|
- | |||||
| 29 | 807566 | Rear Brace |
|
- | |||||
| 30 | 800222 | Junction Box Cover |
|
- | |||||
| 31 | 807019 | Junction Box Bracket |
|
- | |||||
| 32 | 807674 | Hinge Weld Assembly |
|
- | |||||
| 33 | 808458 | Inlet Fitting Retaining Plate |
|
- |
