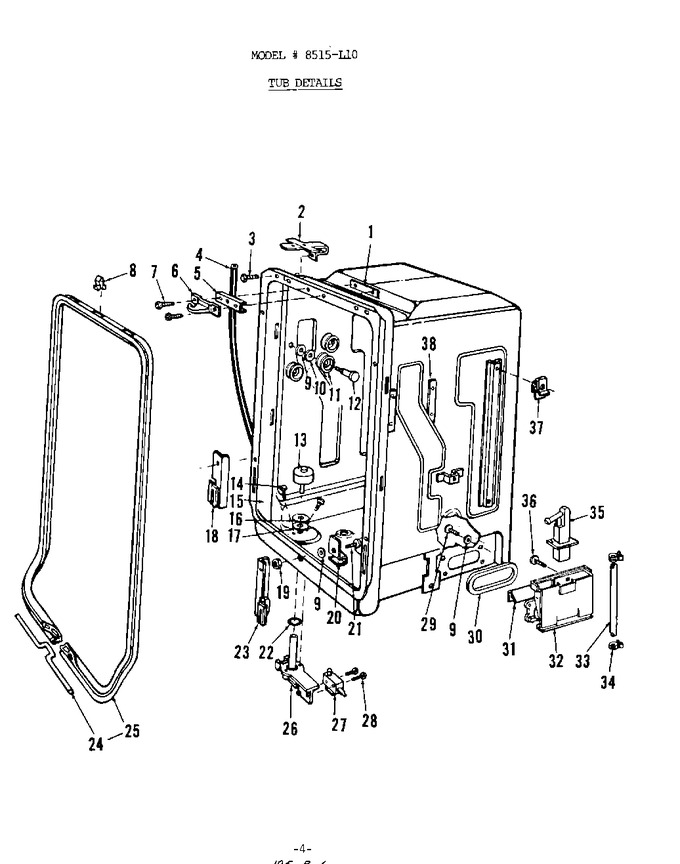

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808868		Latch Tapping Plate		Appelez-nous	-
2	808289		Attach Clip		Appelez-nous	-
3	806894		Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
4	807524		Drain Hose		Appelez-nous	-
5	807073		Shim		Appelez-nous	-
6	807015		Door Strike		Appelez-nous	-
7	806890		Screw 10 X 3/4 Lg. C.r. Flat Hd. Chrome Pl.		Appelez-nous	-
8	805763		Tub Gasket Clip Kit (includes Key No. 20)		Appelez-nous	-
9	805776		Sealing Washer		Appelez-nous	-
10	803367		Washer		Appelez-nous	-
11	807180		Tub Roller		Appelez-nous	-
12	808564		Screw & Washer Kit (includes Key Nos. 9 & 10)		Appelez-nous	-
13	804630		Float		Appelez-nous	-
14	807268		Screw 10x1 Lg. Hex Washer Hd. St. St.		Appelez-nous	-
15	808917		Tub & Gasket Assembly		Appelez-nous	-
16	808064		Plate - Float Tube		Appelez-nous	-
17	808063		Gasket - Float Tube		Appelez-nous	-
18	807599		Counterbalane Arm Guide - L.h.		Appelez-nous	-
19	803346		Nut		Appelez-nous	-
20	COMM PART		Dam Clip   (Replaces: 808115)		Appelez-nous	-
21	WP250830		Screw 8 - 32 X 1/2 Lg. Truss Hd. St.st.   (Replaces: 803319)				$ 7.16
22	807759		``o`` Ring		Appelez-nous	-
23	807600		Counterbalance Arm Guide R.h.		Appelez-nous	-
24	COMM PART		Gasket Junction Wire   (Replaces: 808118)		Appelez-nous	-
25	5303912631		Tub Gasket & Wire Assembly (includes Key Nos. 8 & 24)   (Replaces: 808117)		Appelez-nous	-
26	807677		Float Switch Kit (includes Key Nos. 16,17,22,27,28)		Appelez-nous	-
27	807680		Float Switch		Appelez-nous	-
28	804594		Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl.		Appelez-nous	-
29	806901		Screw 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St.		Appelez-nous	-
30	806797		Blower Housing Gasket		Appelez-nous	-
31	808705		Tapping Plate		Appelez-nous	-
32	808706		Vent Stack		Appelez-nous	-
33	807891		Water Inlet Tubing (includes Key No. 34)		Appelez-nous	-
34	807813		Clamp		Appelez-nous	-
35	808707		Water Inlet Nozzle		Appelez-nous	-
36	808818		Screw 8 X 1/2 Lg. C.r. Flat Hd. Cad. Pl.		Appelez-nous	-
37	806291		Cage Nut		Appelez-nous	-
38	807038		Tapping Plate		Appelez-nous	-
