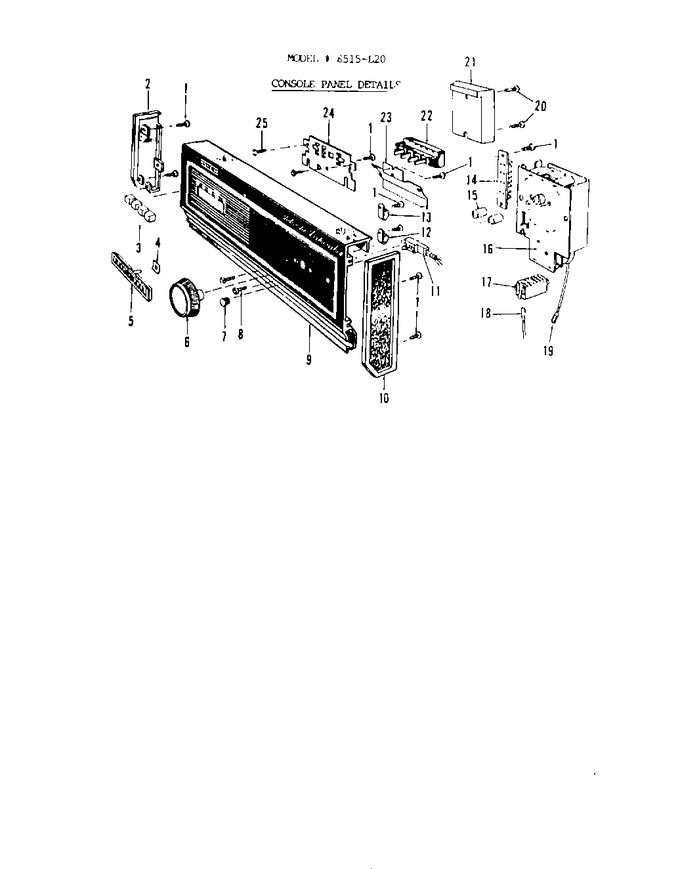

02 - Console


03 - Door


04 - Tub


05 - Motor, Heater, And Spray Arm


06 - Rack


07 - Frame


08 - Detergent Cup


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw No.8x7/16``lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
2	808694		End Cap-l.h. (black)		Appelez-nous	-
3	807273		Pushbutton		Appelez-nous	-
4	808475		Speednut		Appelez-nous	-
5	808477		Vent Grille		Appelez-nous	-
6	808812		Timer Knob		Appelez-nous	-
7	805664		Lens-red		Appelez-nous	-
8	808422		Screw No. 10-32 X 1-17/64 Lg. C.r. Truss Hd. Zinc Pl.		Appelez-nous	-
9	808978		Console Panel (includes Key Nos 4 & 5)		Appelez-nous	-
10	808693		End Cap-r.h. (black)		Appelez-nous	-
11	808711		Light Assembly		Appelez-nous	-
12	808442		Clamp		Appelez-nous	-
13	W10833902		Clamp   (Replaces: 805584)				$ 9.89
15	808424		Spacer		Appelez-nous	-
16	5300808671		Timer   (Replaces: 808671)		Appelez-nous	-
17	808231		Timer Housing (black)		Appelez-nous	-
18	808333		Housing Terminal		Appelez-nous	-
19	808334		Terminal - Timer		Appelez-nous	-
20	806894		Screw No.8x5/16``lg.c.r. Truss Hd. St. St.		Appelez-nous	-
21	807425		Splash Pan		Appelez-nous	-
22	808407		Switch		Appelez-nous	-
23	808574		Shield - Vent Slot		Appelez-nous	-
24	806594		Switch Mounting Bracket		Appelez-nous	-
25	807141		Screw No. 6-30 X 3/8 Lg. Pan Hd. Cad. Pl.		Appelez-nous	-
