SELECT A DIAGRAM

02 - Console


03 - Door


04 - Tub


05 - Motor, Heater, And Spray Arm


06 - Rack


07 - Frame


08 - Detergent Cup

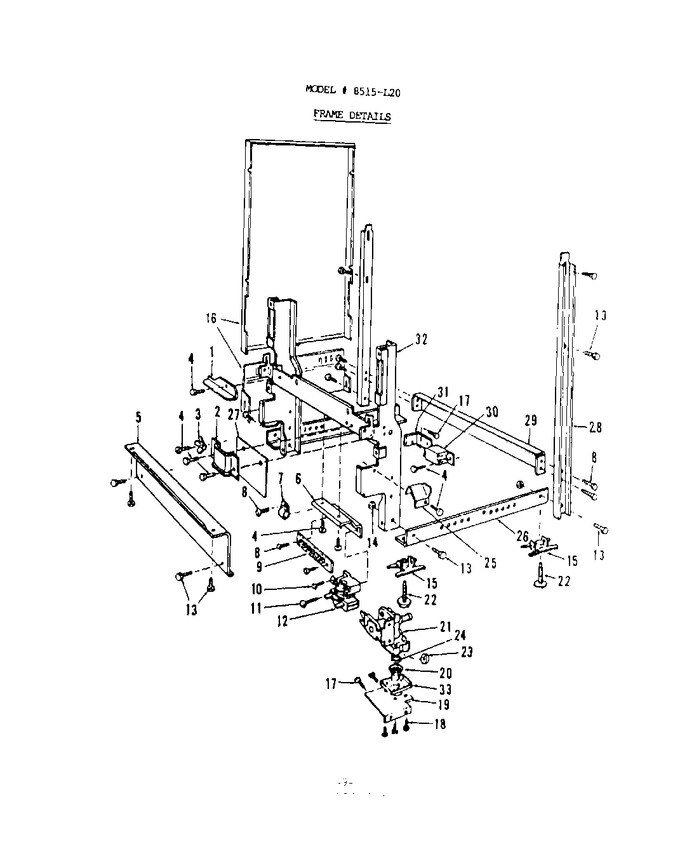

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807558		Suds Deflector L.h.		Appelez-nous	-
2	806723		Wire Clamp		Appelez-nous	-
3	807213		Grounding Terminal		Appelez-nous	-
4	WP90767		Screw No. 8 X 3/8 Lg. C.r. Hex Washer Hd. Chrome Pl.   (Replaces: 808658)			Immediately	$ 7.04
5	807559		Toeplate		Appelez-nous	-
6	807675		Terminal Block Bracket		Appelez-nous	-
7	808442		Clamp		Appelez-nous	-
8	807501		Screw No.8x1/2`` Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
9	COMM PART		Terminal Block Assembly   (Replaces: 807486)		Appelez-nous	-
10	WP488234		Screw No.8-32x1/4``lg. C.r. Pan Hd. Cad. Pl.   (Replaces: 806593)				$ 6.07
11	804672		Screw No.8-32x1 1/4``lg. C.r. Oval Hd Cad. Pl.		Appelez-nous	-
12	805255		Motor Relay		Appelez-nous	-
13	807001		Screw No. 1/4-20 X 1/2`` Lg. Hex Washer Slotted Hd. Black		Appelez-nous	-
14	M0282005		Nut   (Replaces: 804619)				$ 7.07
15	807671		Snap-in Teenut		Appelez-nous	-
16	808888		Side Panel Kit (wheat)		Appelez-nous	-
16	808887		Side Panel Kit (avocado)		Appelez-nous	-
16	808889		Side Panel Kit (almond)		Appelez-nous	-
16	808885		Side Panel Kit (white)		Appelez-nous	-
16	808886		Side Panel Kit (coffee)		Appelez-nous	-
17	807950		Screw No. 10b X 1/2`` Lg. Hex Slot Hd. Cad. Pl.		Appelez-nous	-
18	808368		Screw No. 8-18b X 5/8 Lg. Hex Hd. Zinc Pl.		Appelez-nous	-
19	807613		Valve Mounting Bracket		Appelez-nous	-
20	808337		Inlet Fitting		Appelez-nous	-
21	DW53		Water Valve Kit (includes Key Nos. 23 & 24)   (Replaces: 808668)				$ 44.41
22	807672		Leveler		Appelez-nous	-
23	808577		Flow Washer		Appelez-nous	-
24	806100		Gasket		Appelez-nous	-
25	807563		Suds Deflector R.h.		Appelez-nous	-
26	807564		Base Angle		Appelez-nous	-
27	COMM PART		Wire Shield   (Replaces: 808013)		Appelez-nous	-
28	808670		Support Channel		Appelez-nous	-
29	807566		Rear Brace		Appelez-nous	-
30	800222		Junction Box Cover		Appelez-nous	-
31	807019		Junction Box Bracket		Appelez-nous	-
32	807674		Hinge Weld Assembly		Appelez-nous	-
33	808458		Inlet Fitting Retaining Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
