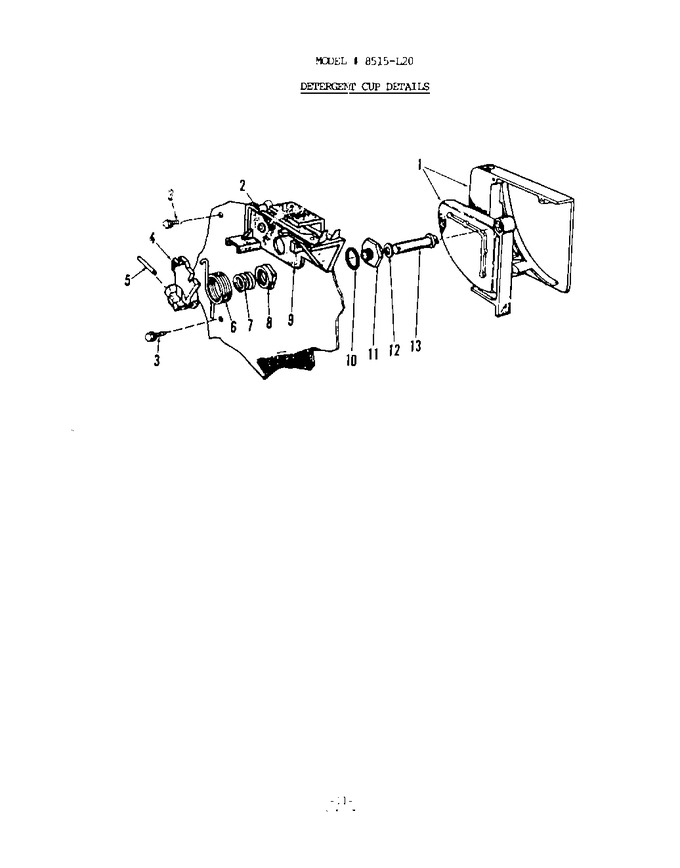

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807261 | Detergent Cup & Cover |
|
- | |||||
| 2 | 808210 | ``o`` Ring |
|
$ 0.42 | |||||
| 3 | 806565 | Screw No. 8 X 5/8 Lg. Hex Washer Hd. St. St. |
|
- | |||||
| 4 | 154180301 | Cam (Replaces: 806566) |
|
$ 32.84 | |||||
| 5 | 808827 | Spirol Pin |
|
- | |||||
| 6 | 805227 | Spring - Cam |
|
- | |||||
| 7 | 806567 | Spring-cam Compression |
|
- | |||||
| 8 | 806568 | Detergent Cup Nut |
|
- | |||||
| 9 | 808507 | Bi-metal Assembly Kit (includes Key No. 11) |
|
- | |||||
| 10 | 802836 | Washer |
|
- | |||||
| 11 | 805626 | Bushing |
|
- | |||||
| 12 | 806647 | ``o`` Ring |
|
- | |||||
| 13 | 806674 | Shaft Kit (includes Key Nos. 2,4,5,7,8,10,11,12) |
|
- |
