SELECT A DIAGRAM

02 - Console


03 - Door


04 - Tub


05 - Motor, Heater, And Spray Arm


06 - Rack


07 - Frame


08 - Detergent Cup

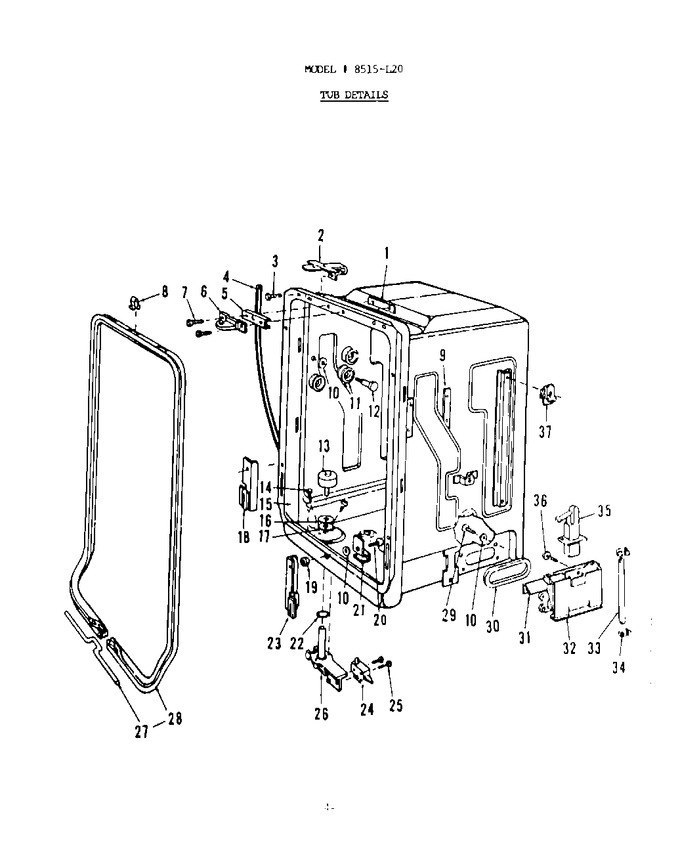

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808868		Latch Tapping Plate		Appelez-nous	-
2	808289		Attach Clip		Appelez-nous	-
3	806894		Screw No.8x5/16``lg.c.r. Truss Hd. St. St.		Appelez-nous	-
4	809112		Drain Hose, Corrugated		Appelez-nous	-
5	807073		Shim		Appelez-nous	-
6	807015		Door Strike		Appelez-nous	-
7	806890		Screw No. 10 X 3/4 Lg. C.r. Flat Hd. Chrome Pl.		Appelez-nous	-
8	805763		Tub Gasket Clip Kit (includes Key No. 21)		Appelez-nous	-
9	807038		Tapping Plate		Appelez-nous	-
10	809044		Washer		Appelez-nous	-
11	807180		Tub Roller		Appelez-nous	-
12	808564		Screw & Washer Kit (includes Key No. 10)		Appelez-nous	-
13	804630		Float		Appelez-nous	-
14	807268		Screw No.10x1``lg. Hex Washer Hd. St. St.		Appelez-nous	-
15	809045		Tub & Gasket Assembly		Appelez-nous	-
16	808064		Plate - Float Tube		Appelez-nous	-
17	808063		Gasket - Float Tube		Appelez-nous	-
18	807599		Counterbalance Arm Guide - L.h.		Appelez-nous	-
19	803346		Nut		Appelez-nous	-
20	WP250830		Screw No.8-32x1/2``lg. C.r. Truss Hd. St. St.   (Replaces: 803319)				$ 7.16
21	COMM PART		Dam Clip   (Replaces: 808115)		Appelez-nous	-
22	807759		``o`` Ring		Appelez-nous	-
23	807600		Counterbalance Arm Guide R.h.		Appelez-nous	-
24	807680		Float Switch		Appelez-nous	-
25	804594		Screw No.4-40x5/8``lg. Hex Hd. Cad. Pl.		Appelez-nous	-
26	807677		Float Switch Kit (includes Key Nos. 16,17,22,24, & 25)		Appelez-nous	-
27	COMM PART		Gasket Junction Wire   (Replaces: 808118)		Appelez-nous	-
28	809003		Tube Gasket & Wire Assembly (includes Key Nos. 8 & 27)		Appelez-nous	-
29	806901		Screw No. 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St.		Appelez-nous	-
30	806797		Blower Housing Gasket		Appelez-nous	-
31	808705		Tapping Plate		Appelez-nous	-
32	808706		Vent Stack		Appelez-nous	-
33	807891		Water Inlet Tubing (includes Key No. 34)		Appelez-nous	-
34	807813		Clamp		Appelez-nous	-
35	808707		Water Inlet Nozzle		Appelez-nous	-
36	808818		Screw No. 8 X 1/2 Lg. C.r. Flat Hd. Cad. Pl.		Appelez-nous	-
37	806291		Cage Nut		Appelez-nous	-
38	809143		Tube Insulation (not Shown)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
