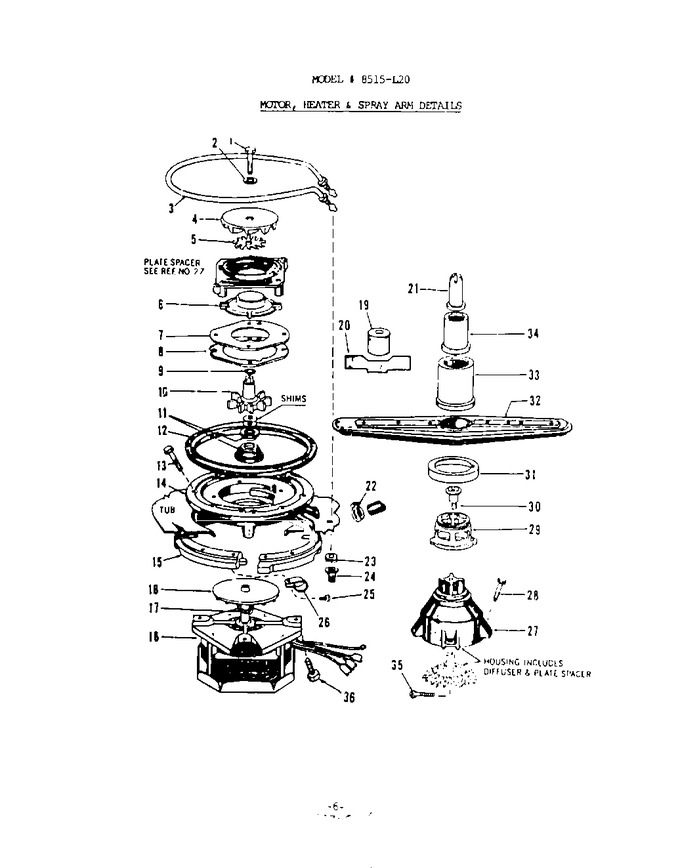

05 - Motor, Heater, And Spray Arm


06 - Rack


07 - Frame


08 - Detergent Cup


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806353		Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St.		Appelez-nous	-
2	803367		Washer		Appelez-nous	-
3	806864		Heater (includes Key Nos. 23 & 24)		Appelez-nous	-
4	809005		Upper Impeller		Appelez-nous	-
5	808075		Blade - Macerator		Appelez-nous	-
6	806267		Shroud - Impeller		Appelez-nous	-
7	807884		Plate - Pump		Appelez-nous	-
8	5300807709		Gasket - Pump   (Replaces: 807709)				$ 54.26
9	806521		``o`` Ring		Appelez-nous	-
10	809116		Pump Seal Kit (includes Key Nos. 2,4,5,9,11,& 20)		Appelez-nous	-
11	803903		Water Seal		Appelez-nous	-
12	809008		Gasket		Appelez-nous	-
13	807268		Screw No.10x1``lg. Hex Washer Hd. St. St.		Appelez-nous	-
14	809059		Pump Housing		Appelez-nous	-
15	807712		Clamp Ring (12)		Appelez-nous	-
16	808899		Watershield Fan (includes Key No. 17)		Appelez-nous	-
17	808898		Tolerance Ring		Appelez-nous	-
18	809100		Motor Assembly (includes Key Nos. 1,9,16 & 20) Complete Pump & Motor		Appelez-nous	-
18	809120		Assembly (includes Key Nos. 1,2,4,5,6,7,8,9,10,11,12,13 14,15,16,17,18,21,27 & 28) - Optional		Appelez-nous	-
19	803923		Seal Installation Tool (required When Installing Key Nos. 10, 11 Or 18)		Appelez-nous	-
20	807077		Gage - Seal Shim		Appelez-nous	-
21	808849		Tower Tip		Appelez-nous	-
22	WP285655		Hose Clamp   (Replaces: 808186)			Immediately	$ 7.55
23	5300806833		Grommet - Heater   (Replaces: 806833)				$ 5.34
24	154106202		Heater Nut 1/2 20 Brass   (Replaces: 806834)			Immediately	$ 18.32
25	807270		Screw No.8x5/8`` Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
26	808442		Clamp		Appelez-nous	-
27	809119		Impeller Housing Kit (includes Key Nos. 6 & 7)		Appelez-nous	-
28	807359		Screw No.10x1 3/4``lg. Hex Hd. St. St.		Appelez-nous	-
29	809046		Bearing		Appelez-nous	-
30	809018		Spray Arm Bolt		Appelez-nous	-
31	808924		Shield Bearing		Appelez-nous	-
32	808848		Spray Arm Assembly		Appelez-nous	-
33	808178		Tower Base		Appelez-nous	-
34	808179		Tower Section		Appelez-nous	-
35	WP67006908		Screw No. 8 X 3/4 Lg. Hex Washer Hd. St. St.   (Replaces: 809121)			Immediately	$ 7.16
36	809022		Screw No. 10 X 1 Lg. Hex Washer Hd. Cad. Pl.		Appelez-nous	-
