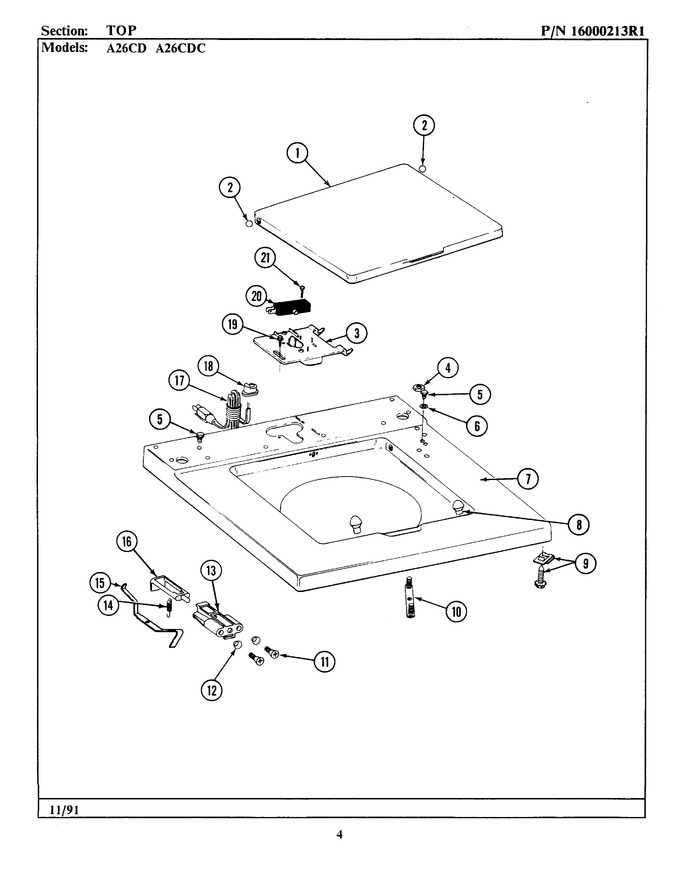

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	214901		Lid-white	01	Appelez-nous	-
001	NLA		Lid-almond	01	Appelez-nous	-
002	WP211726		Hinge, Ball   (Replaces: 211726)	01		Immediately	$ 7.18
003	22001678		Bracket,switch & Fuse   (Replaces: Y215699)	01			$ 28.61
004	WP62739		Nut   (Replaces: Y052740)	01			$ 6.85
005	WP90767		Screw   (Replaces: 211294)	01		Immediately	$ 7.04
006	910309		Washer	01	Appelez-nous	-
007	207173		Top Cover Assy	01	Appelez-nous	-
007	NLA		Top Cover Assy Alm	01	Appelez-nous	-
008	WP212716		Bumper, Lid   (Replaces: 212716)	01		Immediately	$ 7.88
009	204445		Screw & Fastener Asy.	01	Appelez-nous	-
010	NLA		Mtg. Strap----na	01	Appelez-nous	-
011	W10756178		Screw   (Replaces: 910182)	01			$ 5.39
012	211500		Washer,bracke To Top Cover	01	Appelez-nous	-
013	204968		Plunger & Bracket Assembly--w	01			$ 26.05
014	WP213720		Spring   (Replaces: 213720)	01			$ 7.63
015	215704		Unbalance Lever	01	Appelez-nous	-
016	NLA		Lid Switch Plunger	01	Appelez-nous	-
017	204590		Power Cord	01			$ 61.20
018	211881		Grommet, Cord	01	Appelez-nous	-
019	W11233072		Screw   (Replaces: 207159)	01		Immediately	$ 12.62
020	W10820036		Switch, Lid (w/o Tub Light)   (Replaces: 205415)	01		Immediately	$ 27.45
021	213501		Screw, No.6-20 X 1-1/8 Inch	01			$ 12.03
