01 - Control Panel
02 - Top

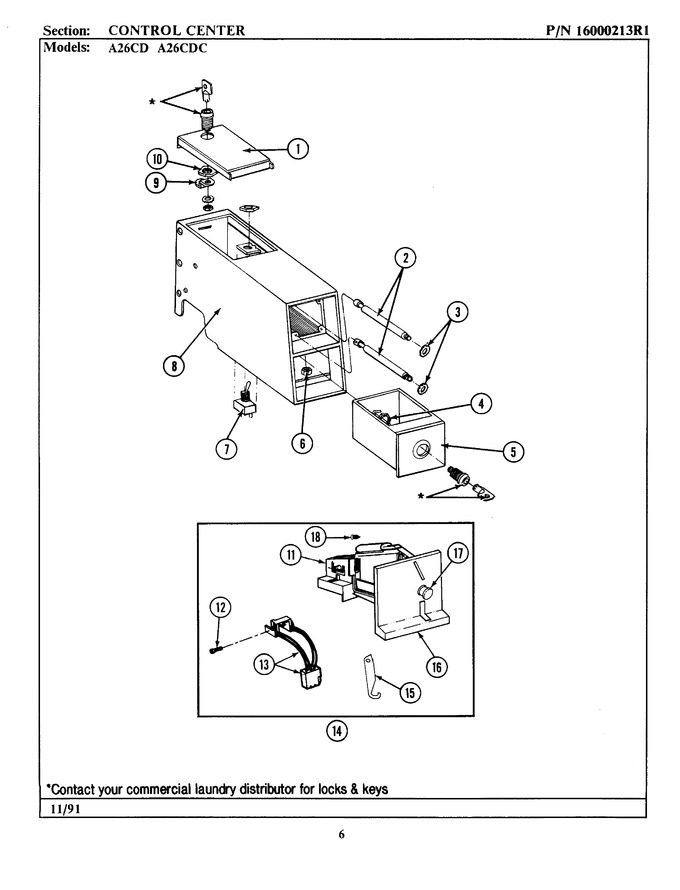

03 - Control Center
04 - Cabinet
05 - Tub Cover
06 - Tub
07 - Transmission
08 - Base
09 - Clutch, Brake & Belts
10 - Motor & Pump
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 203188 | Door, Access (wht) | 01 |
|
- | ||||
| 001 | 203188L | Access Door-almond | 01 |
|
- | ||||
| 001 | 203188M | Access Door-harvest Wheat | 01 |
|
- | ||||
| 002 | 213035 | Bolt, Locking | 01 |
|
$ 5.84 | ||||
| 003 | 910181 | Lock Washer | 01 |
|
- | ||||
| 004 | W11395752 | Nut, Hex (Replaces: 212328) | 01 |
|
$ 11.74 | ||||
| 005 | 207912 | Box, Coin (wht)----sub | 01 |
|
- | ||||
| 005 | 207912L | Coin Box - Almond----na | 01 |
|
- | ||||
| 005 | NLA | Coin Box - Harvest Wheat | 01 |
|
- | ||||
| 006 | WP62739 | Nut (Replaces: Y052740) | 01 |
|
$ 6.85 | ||||
| 007 | 206794 | Switch | 01 |
|
- | ||||
| 008 | 207940 | Case, Coin Meter (wht) | 01 |
|
- | ||||
| 008 | 207940L | Control Centercase Almond | 01 |
|
- | ||||
| 008 | NLA | Control Center Case Harvest Wh | 01 |
|
- | ||||
| 009 | W11165684 | Locking Cam (Replaces: 213750) | 01 |
|
$ 8.20 | ||||
| 010 | W11395752 | Nut, Hex (Replaces: 212328) | 01 |
|
$ 11.74 | ||||
| 011 | 207949 | Coin Rejector 25 Cents | 01 |
|
- | ||||
| 012 | WP3395530 | Screw (Replaces: 314665) | 01 |
|
$ 6.93 | ||||
| 013 | 206799 | Switch, Optic Assy. | 01 |
|
$ 113.64 | ||||
| 014 | NLA | Coin Drop Assy 25 Cents | 01 |
|
- | ||||
| 015 | 216011 | Spring, Button | 01 |
|
- | ||||
| 016 | 216010 | Plate, Mounting | 01 |
|
- | ||||
| 017 | 216009 | Button, Return | 01 |
|
- | ||||
| 018 | NLA | Screw For Caution Plate----na | 01 |
|
- |
