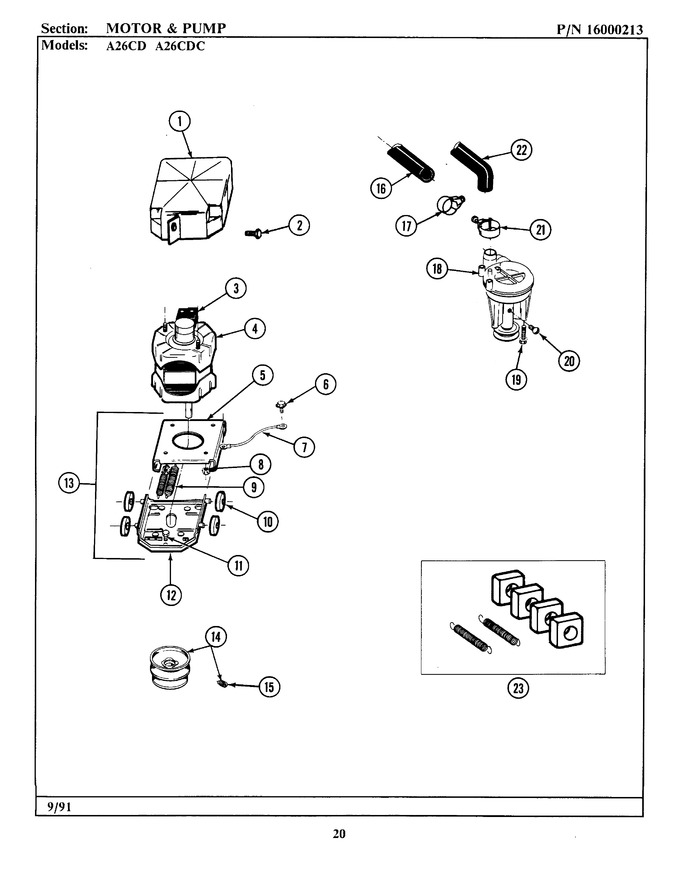

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	215098		Shield, Motor	01	Appelez-nous	-
002	WPW10346892		Screw   (Replaces: 213121)	01		Immediately	$ 6.47
003	205132		Switch, Motor Start Prod. No. 2-1664-4, 2-1664-9, 2-1664-10	01	Appelez-nous	-
003	205133		2-1664-8 & 2-5463		Appelez-nous	-
003	206505		2-1664-11, 2-1664-13, &		Appelez-nous	-
003	NLA		Switch, Motor Start Prod. No.	01	Appelez-nous	-
004	12002351		Motor (one Speed)   (Replaces: 201805)	01		Immediately	$ 170.98
005	214956		Mount, Motor/upper	01	Appelez-nous	-
006	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	01			$ 9.79
007	901220		Wire, Ground	01	Appelez-nous	-
008	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	01		Immediately	$ 6.98
009	202718		Tension Springs	01		Immediately	$ 200.35
010	205000		Glide Kit (4 W/poly Lube)   (Replaces: Y204998)	01			$ 62.00
011	Y313561		Screw----na	01			$ 5.27
012	205908		Lower Motor Mount	01	Appelez-nous	-
013	205999		Motor Mount Assm Complete	01			$ 61.84
014	200816		Pulley, Motor (w/set Screw)	01	Appelez-nous	-
015	Y053241		Set Screw, Pulley	01	Appelez-nous	-
016	215057		Drain Hose	01	Appelez-nous	-
017	WP285655		Hose Clamp - 1-5/8 Inch   (Replaces: 200461)	01		Immediately	$ 7.55
018	202203		Pump As Pak	01	Appelez-nous	-
019	WPY014874		Screw, Hex Hd No.10 X 1/2 Inc   (Replaces: 211880)	01			$ 6.98
020	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	01			$ 7.04
021	WP3367052		Clamp, Hose   (Replaces: 202574)	01			$ 7.49
022	WP213045		Drain Hose-tub To Pump   (Replaces: 213045)	01		Immediately	$ 43.57
023	205000		Glide & Spring Kit	01			$ 62.00

    View Diagram in Separate Window       Print Part List
