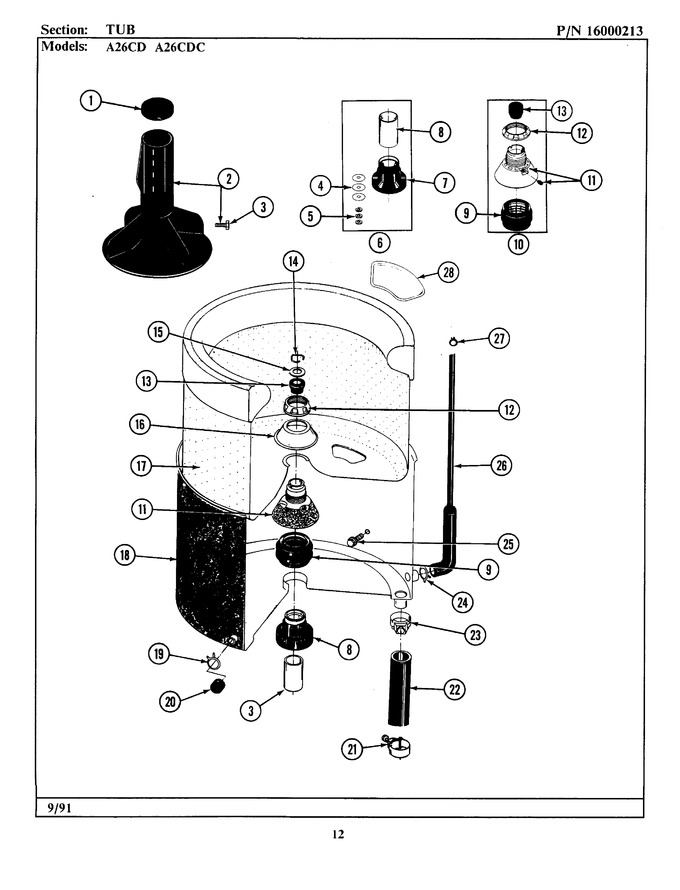

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 215532 | Agitator Cap - Black | 01 |
|
$ 5.65 | ||||
| 002 | 207119 | Agitator W/lock Screw | 01 |
|
- | ||||
| 003 | 206478 | Screw & Washer For Agitator | 01 |
|
- | ||||
| 004 | 211100 | Washer, Cushion | 01 |
|
- | ||||
| 005 | Y054867 | Washer, Lock | 01 |
|
- | ||||
| 006 | 6-2040130 | Tub Bearing Repair Kit (Replaces: 204013) | 01 |
|
Immediately | $ 73.68 | |||
| 007 | 6-2040130 | Bearing, Tub (Replaces: 200824) | 01 |
|
Immediately | $ 73.68 | |||
| 008 | 211130 | Liner, Tub Bearing | 01 |
|
$ 724.10 | ||||
| 009 | 201537 | Seal And Spring | 01 |
|
- | ||||
| 010 | 204012 | Mounting Stem Repair Kit | 01 |
|
- | ||||
| 011 | 202521 | Mounting Stem | 01 |
|
- | ||||
| 012 | 211047 | Nut, Clamping (inner Tub) | 01 |
|
- | ||||
| 013 | WP6-0A57420 | Seal, Agitator Drive Shaft (Replaces: Y0A4298) | 01 |
|
Immediately | $ 33.64 | |||
| 014 | Y015667 | Retaining Ring | 01 |
|
$ 8.70 | ||||
| 015 | WPY015666 | Washer,retaining(center Seal)- (Replaces: Y015666) | 01 |
|
$ 6.96 | ||||
| 016 | 211210 | Washer,clamping Nut(stainless) | 01 |
|
$ 5.84 | ||||
| 017 | 207831 | Inner Tub W/plug | 01 |
|
- | ||||
| 018 | 205484 | Outer Tub | 01 |
|
- | ||||
| 019 | WP596669 | Spring Hose Clamp (Replaces: 214739) | 01 |
|
Immediately | $ 7.56 | |||
| 020 | 214725 | Cap For Spout-outer Tub | 01 |
|
$ 5.65 | ||||
| 021 | WP3367052 | Clamp, Hose (Replaces: 202574) | 01 |
|
$ 7.49 | ||||
| 022 | WP213045 | Drain Hose-tub To Pump (Replaces: 213045) | 01 |
|
Immediately | $ 43.57 | |||
| 023 | WP616099 | Clamp, Spray Arm Hose (Replaces: 200900) | 01 |
|
Immediately | $ 7.03 | |||
| 024 | WP285655 | Clamp, 1-1/16`` (Replaces: 211641) | 01 |
|
Immediately | $ 7.55 | |||
| 025 | W10175939 | Bolt & Gasket Assy.(short) (Replaces: 200744) | 01 |
|
$ 7.79 | ||||
| 025 | W10175938 | Bolt & Gasket Assembly (long) (Replaces: 205254) | 01 |
|
Immediately | $ 7.00 | |||
| 026 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 01 |
|
$ 75.73 | ||||
| 027 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 01 |
|
Immediately | $ 7.56 | |||
| 028 | 215980 | Plug, Filter Hole | 01 |
|
$ 64.66 |
