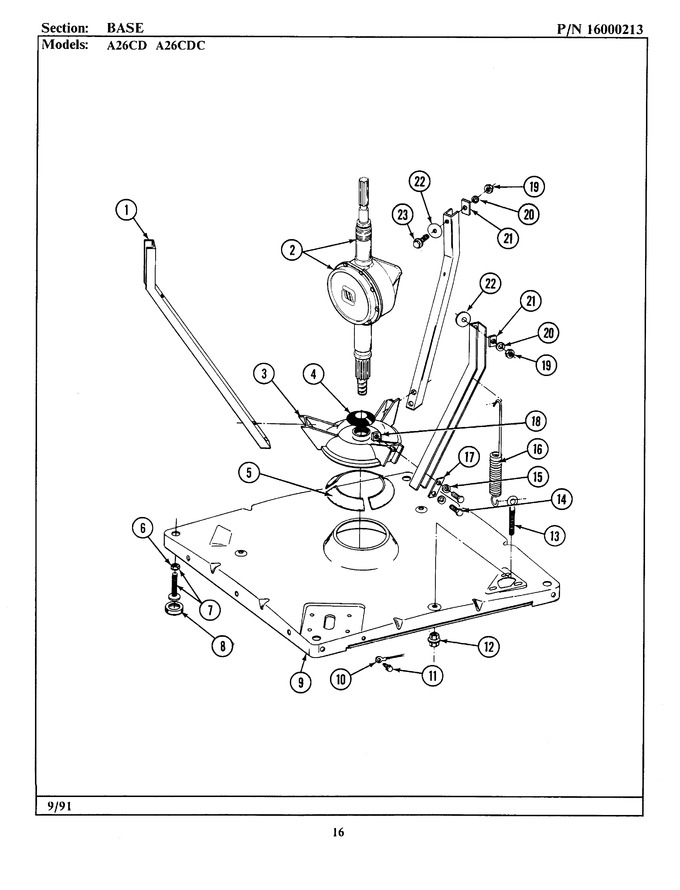

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	213053		Brace, Tub	01	Appelez-nous	-
002	206707		Transmission, Orbital	01	Appelez-nous	-
003	1N4004		Damper W/bolt & Clip   (Replaces: 203725)	01	Appelez-nous	-
004	211028		Deflector,water (drive Tube)	01	Appelez-nous	-
005	203956		Damper Pad Kit (w/poly Lube)	01		Immediately	$ 47.33
006	WP210385		Nut, Lock   (Replaces: 210385)	01			$ 6.26
007	22003428		Leg, Adjustable (w/nut)---s   (Replaces: Y302699)	01		Immediately	$ 14.41
008	WP210684		Foot, Rubber   (Replaces: 210684)	01		Immediately	$ 14.09
009	203274		Base With Damper Pads	01	Appelez-nous	-
010	204807		Grnd.wire,supp.plte To Top Cvr	01	Appelez-nous	-
011	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	01			$ 9.79
012	WP211949		Nut, Eyebolt   (Replaces: 211949)	01			$ 6.88
013	W11129403		Eye Bolt For Center Spring   (Replaces: 213120)	01			$ 12.23
014	Y015627		Screw, Hex Hd Cap 5/16 X 5/8	01			$ 8.15
015	911852		Washer, Lock (brace)	01	Appelez-nous	-
016	213054		Centering Spring - 3 Used	01	Appelez-nous	-
017	213073		Washer, Double	01	Appelez-nous	-
018	Y052785		Nut,brace To Damper	01	Appelez-nous	-
019	Y052734		Nut	01	Appelez-nous	-
020	Y054867		Washer, Lock	01	Appelez-nous	-
021	212979		Washer, Tub Brace	01			$ 91.61
022	211100		Washer, Cushion	01	Appelez-nous	-
023	W10175939		Bolt & Gasket Assy.(short)   (Replaces: 200744)	01			$ 7.79
023	W10175938		Bolt & Gasket Assembly (long)   (Replaces: 205254)	01		Immediately	$ 7.00
