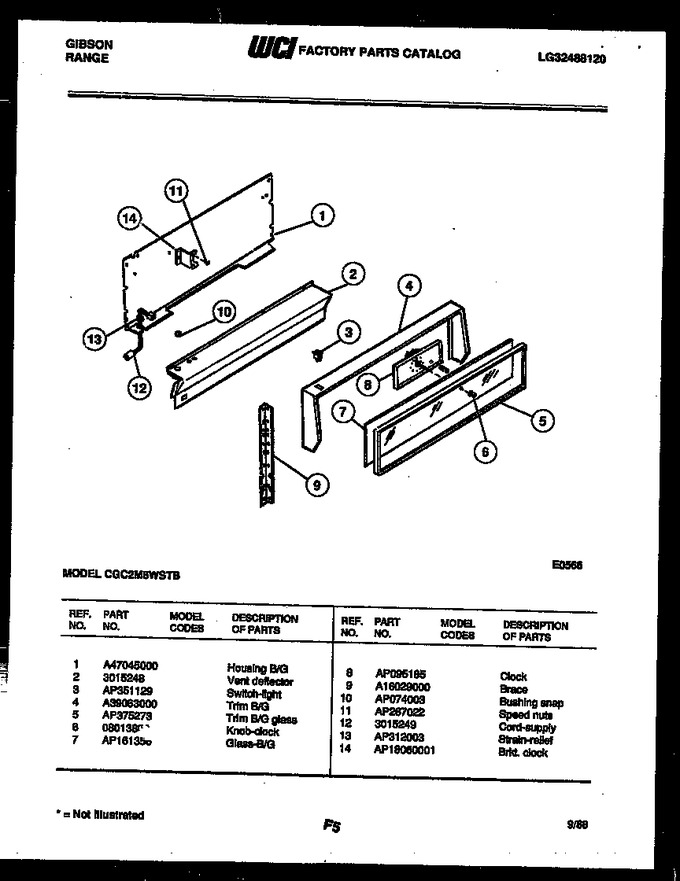

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A47045000 | Housing B/g |
|
- | |||||
| 2 | 3015248 | Vent - Deflector |
|
- | |||||
| 3 | AP351129 | Switch Light |
|
- | |||||
| 4 | A39063000 | Trim B/g |
|
- | |||||
| 5 | AP375273 | Trim B/g Glass |
|
- | |||||
| 6 | 08013888 | Knob - Clock |
|
- | |||||
| 7 | AP161356 | Glass-b/g |
|
- | |||||
| 8 | AP095185 | Clock |
|
- | |||||
| 9 | A16029000 | Brace |
|
- | |||||
| 10 | AP074003 | Bushing-snap |
|
- | |||||
| 11 | AP267022 | Speed Nuts |
|
- | |||||
| 12 | 3015249 | Cord-supply |
|
- | |||||
| 13 | AP312003 | Strain Relief |
|
- | |||||
| 14 | AP18060001 | Brkt. Clock |
|
- |
