SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Body Parts
05 - Broiler Drawer Parts
06 - Door Parts
07 - Burner Parts
SELECT A DIAGRAM
New Model Search:

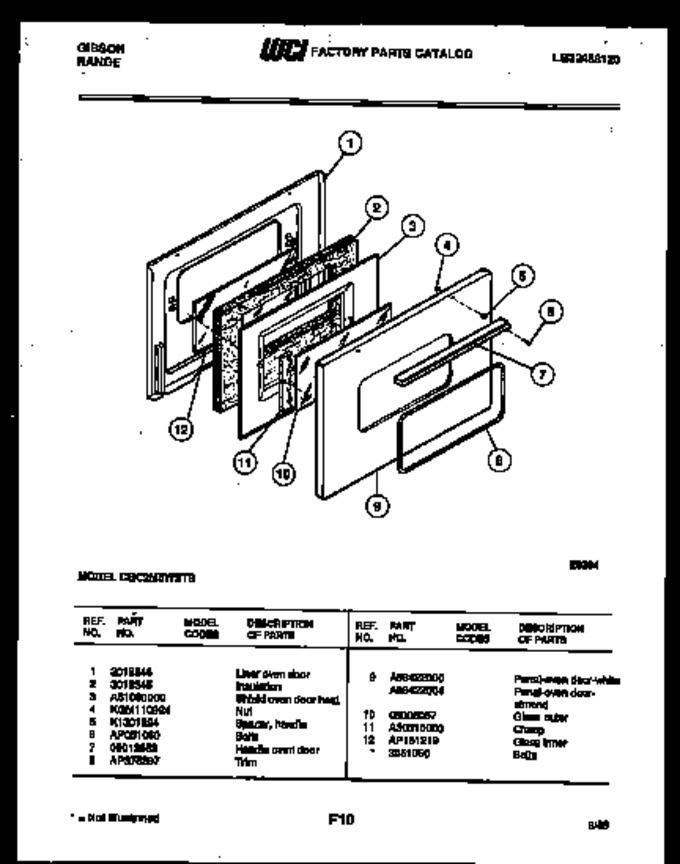

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018346 | Liner-oven Door |
|
- | |||||
| 2 | 3018345 | Insulation |
|
- | |||||
| 3 | A61080000 | Shield-oven Door Heat |
|
- | |||||
| 4 | KGM110924 | Nut |
|
- | |||||
| 5 | K1301324 | Spacer-handle |
|
- | |||||
| 6 | AP051060 | Bolts |
|
- | |||||
| 7 | 08013882 | Handle Oven Door |
|
- | |||||
| 8 | AP375397 | Trim |
|
- | |||||
| 9 | A98422004 | Panel-oven Door-almond |
|
- | |||||
| 9 | A98422000 | Panel-oven Door-white |
|
- | |||||
| 10 | 08008057 | Glass - Outer |
|
- | |||||
| 11 | A30010000 | Clamp |
|
- | |||||
| 12 | AP161219 | Glass Inner |
|
- | |||||
| *10875 | 3051050 | Bolts |
|
$ 12.29 |
