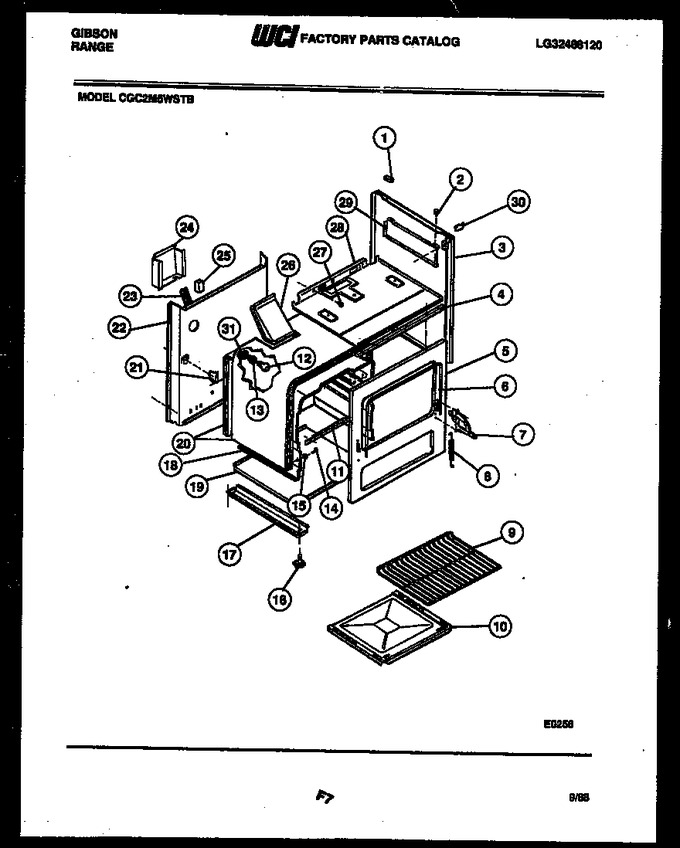

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	AP172002		Grommet-main Top (2)		Appelez-nous	-
2	3016129		Grommet (2)		Appelez-nous	-
3	3051061		Body Side Panel White		Appelez-nous	-
3	A64013004		Bodyside Panel-almond		Appelez-nous	-
4	A74076000		Support, Control Panel		Appelez-nous	-
5	3017790		Front Frame		Appelez-nous	-
6	AP326052		Seal - Oven Door		Appelez-nous	-
7	3051078		Oven Door Hinge (rt)		Appelez-nous	-
8	08008028		Spring Oven Door (2)		Appelez-nous	-
9	3015714		Rack - Oven (2)		Appelez-nous	-
10	3018282		Oven Bottom		Appelez-nous	-
11	3131038		Support-oven Bottom		Appelez-nous	-
12	K1186186		Bulb-oven Light		Appelez-nous	-
13	3131807		Recept - Oven Light		Appelez-nous	-
14	AP051045		Shoulder Bolt		Appelez-nous	-
15	AP391021		Washer		Appelez-nous	-
16	AP059009		Leveling Leg		Appelez-nous	-
17	3018284		Lining-oven Rs		Appelez-nous	-
17	A98373000		Base Rail		Appelez-nous	-
19	08011515		Bottom, Main		Appelez-nous	-
20	AP207065		Insulation-wrap		Appelez-nous	-
21	3051096		Support-oven		Appelez-nous	-
22	A05087000		Main Back		Appelez-nous	-
23	A29017000		Wire Channel-main Back		Appelez-nous	-
24	A32137000		Cover-spark Module		Appelez-nous	-
25	3015197		Module-spark		Appelez-nous	-
27	AP074001		Snap Bushing		Appelez-nous	-
28	3017174		Bottom Burner Box		Appelez-nous	-
29	3131053		Shield-heat Rh Side		Appelez-nous	-
30	3009582		Clip - B/s		Appelez-nous	-
31	3051511		Cup, Oven Light				$ 60.22
17A	3018347		Lining-oven Top		Appelez-nous	-
17A	3018285		Lining-oven Ls		Appelez-nous	-
17B	3018286		Lining-oven-back		Appelez-nous	-
20A	AP207068		Insulation-back		Appelez-nous	-
25A	3017173		Vent Box Assy.		Appelez-nous	-
29A	3131054		Shield-heat Lh Side		Appelez-nous	-
7A	A96067000		Oven Door Hinge (lt)		Appelez-nous	-
