02 - Backguard


03 - Cooktop Parts


04 - Body Parts


05 - Broiler Drawer Parts


06 - Door Parts


07 - Burner Parts

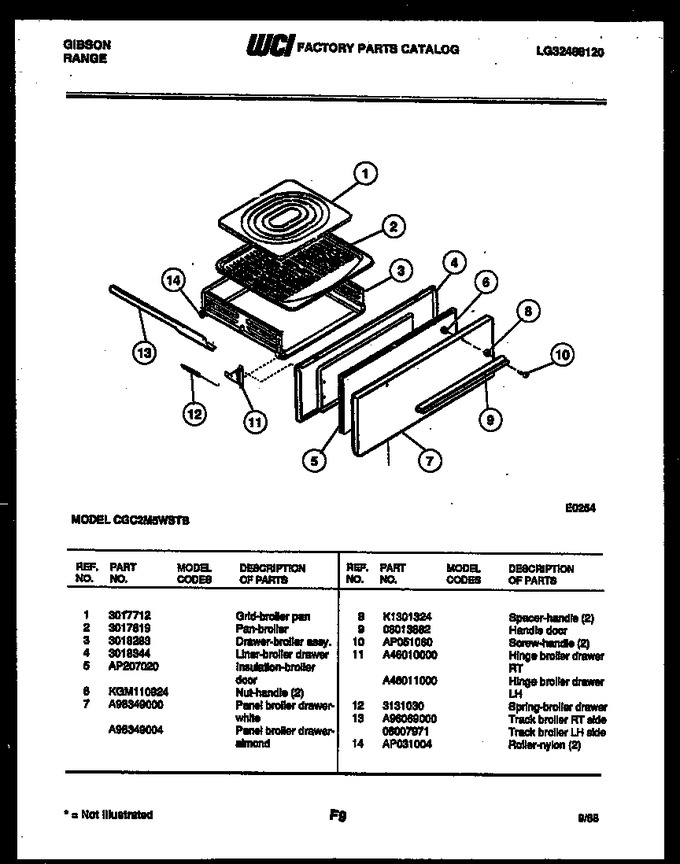

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017712		Grid-broiler Pan		Appelez-nous	-
2	3017819		Pan - Broiler		Appelez-nous	-
3	3018283		Drawer-broiler Assy.		Appelez-nous	-
4	3018344		Liner - Broiler Drawer		Appelez-nous	-
5	AP207020		Insulation-broiler Door		Appelez-nous	-
6	KGM110924		Nut-handle (2)		Appelez-nous	-
7	A98349004		Panel Broiler Drawer-almond		Appelez-nous	-
7	A98349000		Panel Broiler Drawer-white		Appelez-nous	-
8	K1301324		Spacer-handle (2)		Appelez-nous	-
9	08013882		Handle Door		Appelez-nous	-
10	AP051060		Screw-handle (2)		Appelez-nous	-
11	A46010000		Hinge Broiler Drawer Rt		Appelez-nous	-
12	3131030		Spring Broiler-drawer		Appelez-nous	-
13	A96069000		Track Broiler Rt Side		Appelez-nous	-
14	AP031004		Roller-nylon (2)		Appelez-nous	-
11A	A46011000		Hinge Broiler Drawer Lh		Appelez-nous	-
13A	08007971		Track Broiler Lh Side		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
