View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Body Parts
05 - Broiler Drawer Parts
06 - Door Parts
07 - Burner Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

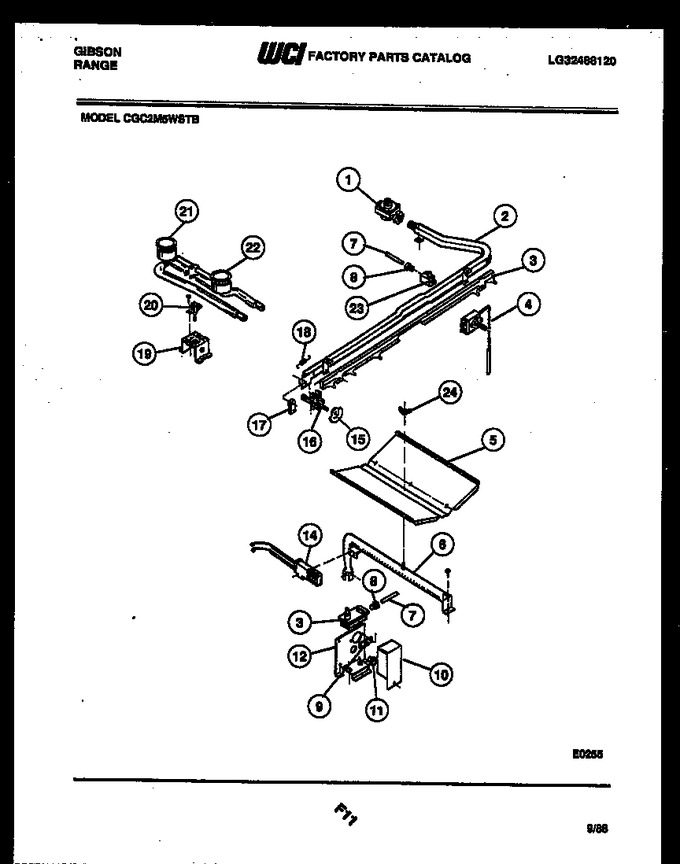

| 1 | AP310007 | Pressure Regul. |
|
- | |||||
| 2 | 08013906 | Manifold Pipe |
|
- | |||||
| 3 | A66018000 | Slide Bar |
|
- | |||||
| 4 | AP367066 | Thermostat |
|
- | |||||
| 5 | 3131061 | Baffle-oven Burner |
|
- | |||||
| 6 | AP072025 | Burner-oven |
|
- | |||||
| 7 | 3131085 | Tube-3/8 Loxit |
|
- | |||||
| 8 | AP269017 | Nut-3/8 Feed |
|
- | |||||
| 9 | 3009519 | Terminal Block |
|
- | |||||
| 10 | A32130000 | Cover-oven Safety Valve |
|
- | |||||
| 11 | AP074001 | Snap Bushing |
|
- | |||||
| 12 | 3131069 | Support-oven Safety Valve |
|
- | |||||
| 13 | AP385181 | Valve Safety |
|
- | |||||
| 14 | 12400035 | Igniter-oven\ (Replaces: 08009420) |
|
Immediately | $ 60.44 | ||||
| 15 | A22002000 | Cam, Valve |
|
- | |||||
| 16 | AP385194 | Valve-top Burner |
|
- | |||||
| 17 | AP351123 | Micro Switch |
|
- | |||||
| 18 | AP339058 | Spring-slide Bar |
|
- | |||||
| 19 | 3016870 | Support - Top Burner |
|
- | |||||
| 20 | 3015196 | Igniter-top Burner 36`` |
|
- | |||||
| 21 | AP072044 | Burner Top Rear |
|
- | |||||
| 22 | AP072043 | Burner Top Front |
|
- | |||||
| 23 | 3131099 | Valve - Shut Off |
|
- | |||||
| 24 | AP269004 | Wing Nut |
|
- | |||||
| 4A | 3131060 | Clip-capillary Bulb (non-illustrated) |
|
- |
