01 - Top And Cabinet Parts

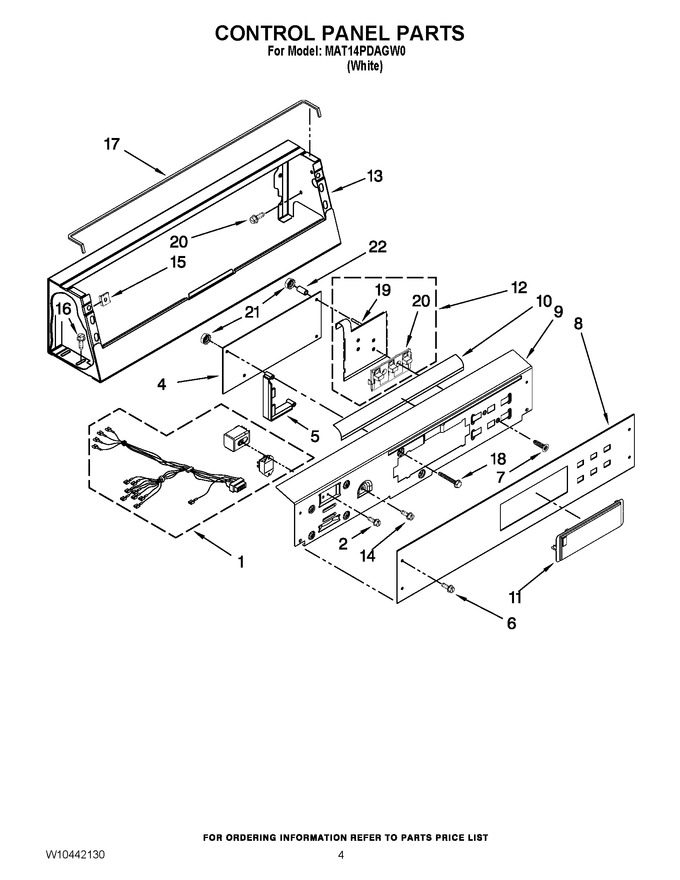

02 - Control Panel Parts


03 - Meter Case Parts


04 - Rear Panel Parts


05 - Agitator, Basket And Tub Parts


06 - Brake, Clutch, Gearcase, Motor And Pump Parts


07 - Machine Base Parts


08 - Brake And Drive Tube Parts


09 - Gearcase Parts


10 - Water System Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10337495		Harness, Console Relays		Appelez-nous	-
2	W10142650		Screw, 6-32 X .490				$ 12.03
4	W10130701		Control Board				$ 242.37
5	W10161568		Shield, Probing		Appelez-nous	-
6	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.26
7	W10756178		Screw, 6-20 X 1/2   (Replaces: W10140652)				$ 5.39
8	WPW10135334		Facia / Overlay   (Replaces: W10135334)				$ 188.69
9	W10124210		Bracket, Control		Appelez-nous	-
10	W10133515		Deflector		Appelez-nous	-
11	WPW10131114		Display Cover   (Replaces: W10131114)				$ 42.79
12	WPW10135389		Push Button & Switch Assembly   (Replaces: W10135389)				$ 125.66
13	W10231471		Console (includes Item 17)   (Replaces: W10205153)		Appelez-nous	-
14	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 6.75
15	WPW10131123		Nut, No.8 U Type   (Replaces: W10131123)				$ 6.94
16	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.04
17	WPW10157932		Foam Seal   (Replaces: W10157932)			Immediately	$ 7.25
18	W11117300		Screw, 6-32 X 1.00   (Replaces: W10137322)		Appelez-nous	-
19	WPW10135255		Membrane Switch & Backer Plate Assembly   (Replaces: W10135255)				$ 188.06
20	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 18.38
21	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 7.91
22	W11117166		Spacer   (Replaces: W10133514)		Appelez-nous	-
