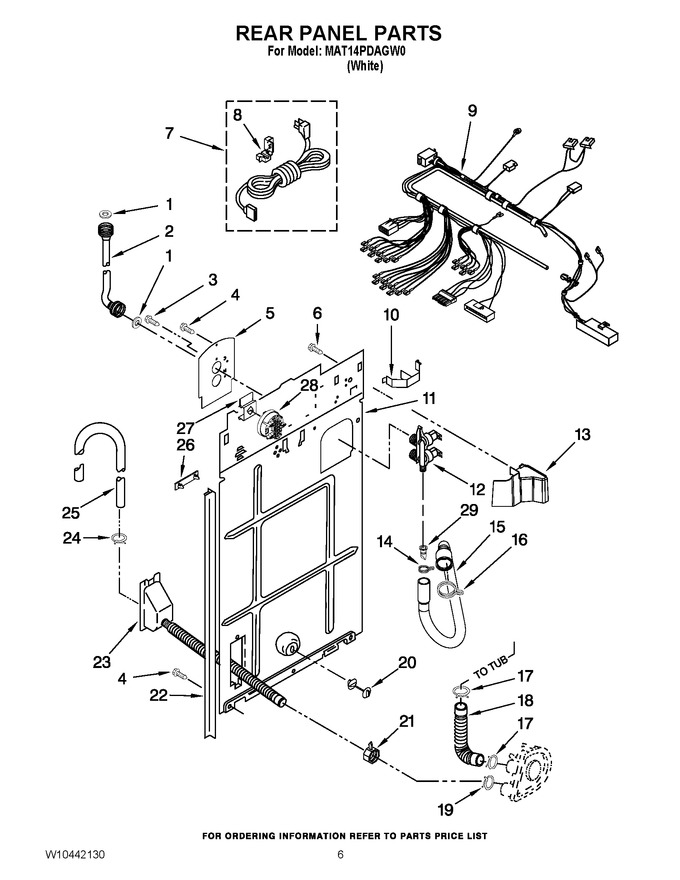

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)   (Replaces: W10242307)				$ 6.93
2	WPW10615809		Hose, Water Inlet (blue Coupler)   (Replaces: 3949383)				$ 89.75
2	WPW10615831		Hose, Water Inlet (red Coupler)   (Replaces: 3949382)				$ 88.84
3	W10080930		Screw, 8-18 X 1/2		Appelez-nous	-
4	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
5	WPW10444468		Plate, Mixing Valve   (Replaces: W10444468)				$ 193.90
6	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 6.26
7	W10162486		Cord, Power		Appelez-nous	-
8	8559337		Strain Relief, Power Cord To Rear Panel		Appelez-nous	-
9	W10457904		Harness, Wiring   (Replaces: W10337493)		Appelez-nous	-
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	285929		Panel, Rear   (Replaces: 8541649)				$ 292.04
12	WPW10444468		Valve, Water Mixing   (Replaces: W10444468)				$ 193.90
13	8314879		Shield, Inlet Valve		Appelez-nous	-
14	WP596669		Clamp, Hose   (Replaces: W10156124)			Immediately	$ 7.56
15	W10114765		Hose, Fresh Fill				$ 36.45
16	WP285655		Clamp, Hose   (Replaces: W10151157)			Immediately	$ 7.55
17	WP616099		Clamp, Hose   (Replaces: W10094820)			Immediately	$ 7.03
18	285871		Hose, Pump To Tub (includes Item 17)   (Replaces: W10116973)			Immediately	$ 24.01
19	WP285655		Clamp, Hose   (Replaces: W10142630)			Immediately	$ 7.55
20	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.01
21	3976395		Clamp, Hose				$ 11.96
22	WP62747		Pad, Rear Panel   (Replaces: 3354204)				$ 23.63
23	WPW10358151		Drain Hose Assy. (includes Item 21)   (Replaces: W10358151)				$ 95.34
24	WP285655		Clamp, Hose   (Replaces: W10112110)			Immediately	$ 7.55
25	WPW10141216		Hose, Discharge Gooseneck   (Replaces: W10141216)				$ 52.49
26	389379		Retainer, Side To Feature Panel				$ 5.84
27	W10133269		Bracket, Pressure Switch		Appelez-nous	-
28	W10414159		Pressure Switch Triple-level				$ 182.93
29	8055306		Check Valve, Duck Bill				$ 13.67
NI	W10628146		10a Cord Adapters (austrailian)   (Replaces: W10223804)				$ 107.05
NI	W10153836		10a Cord Lock		Appelez-nous	-
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	W10628146		10a Cord Adapters (european)   (Replaces: W10223809)				$ 107.05
NI	W10223807		10a Cord Adapters (british)		Appelez-nous	-
